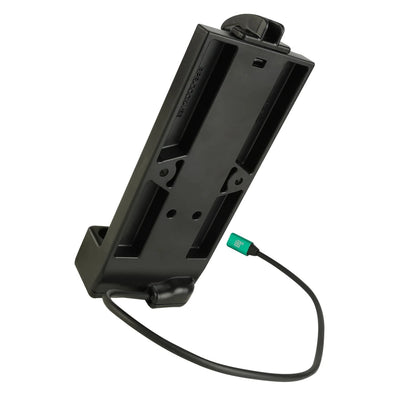

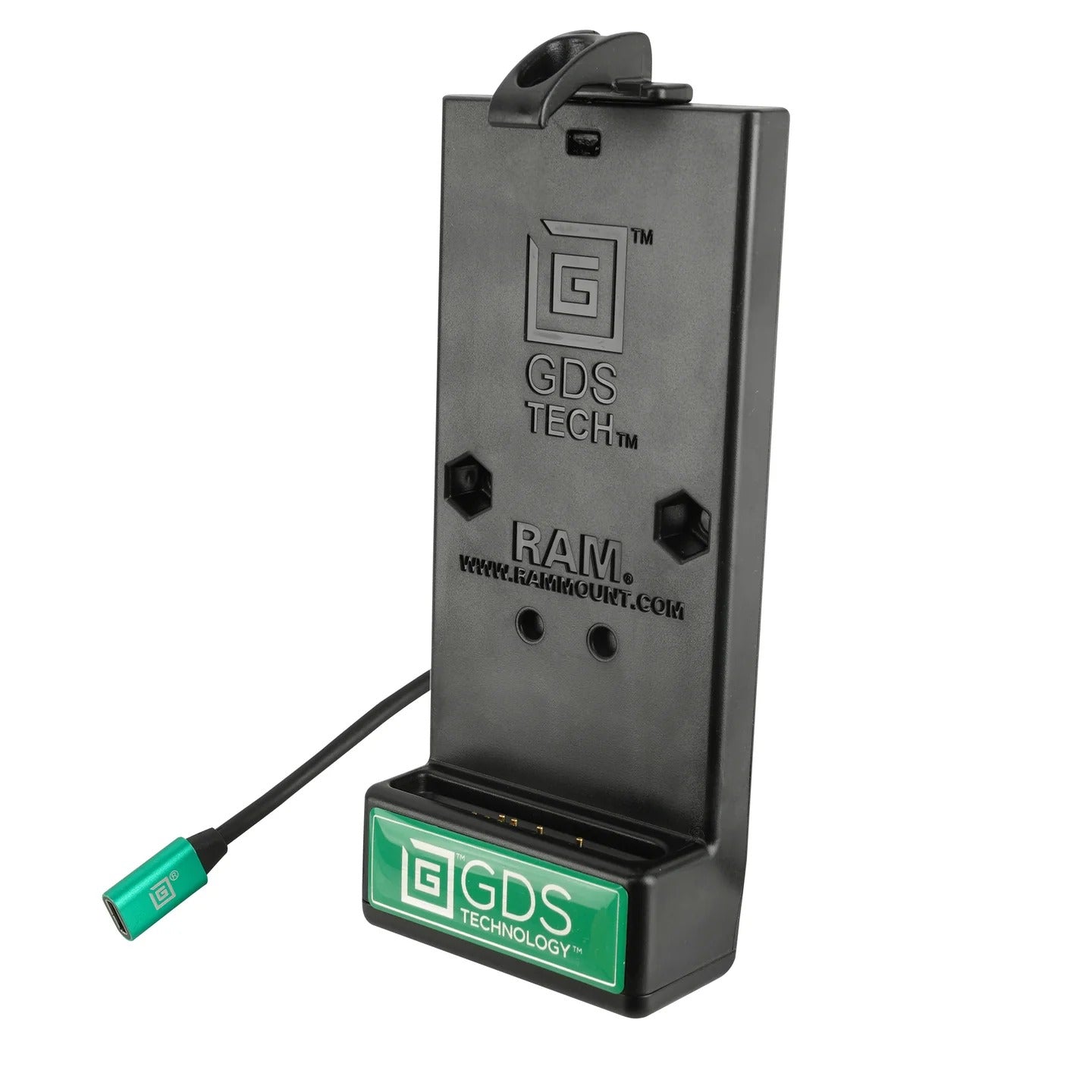

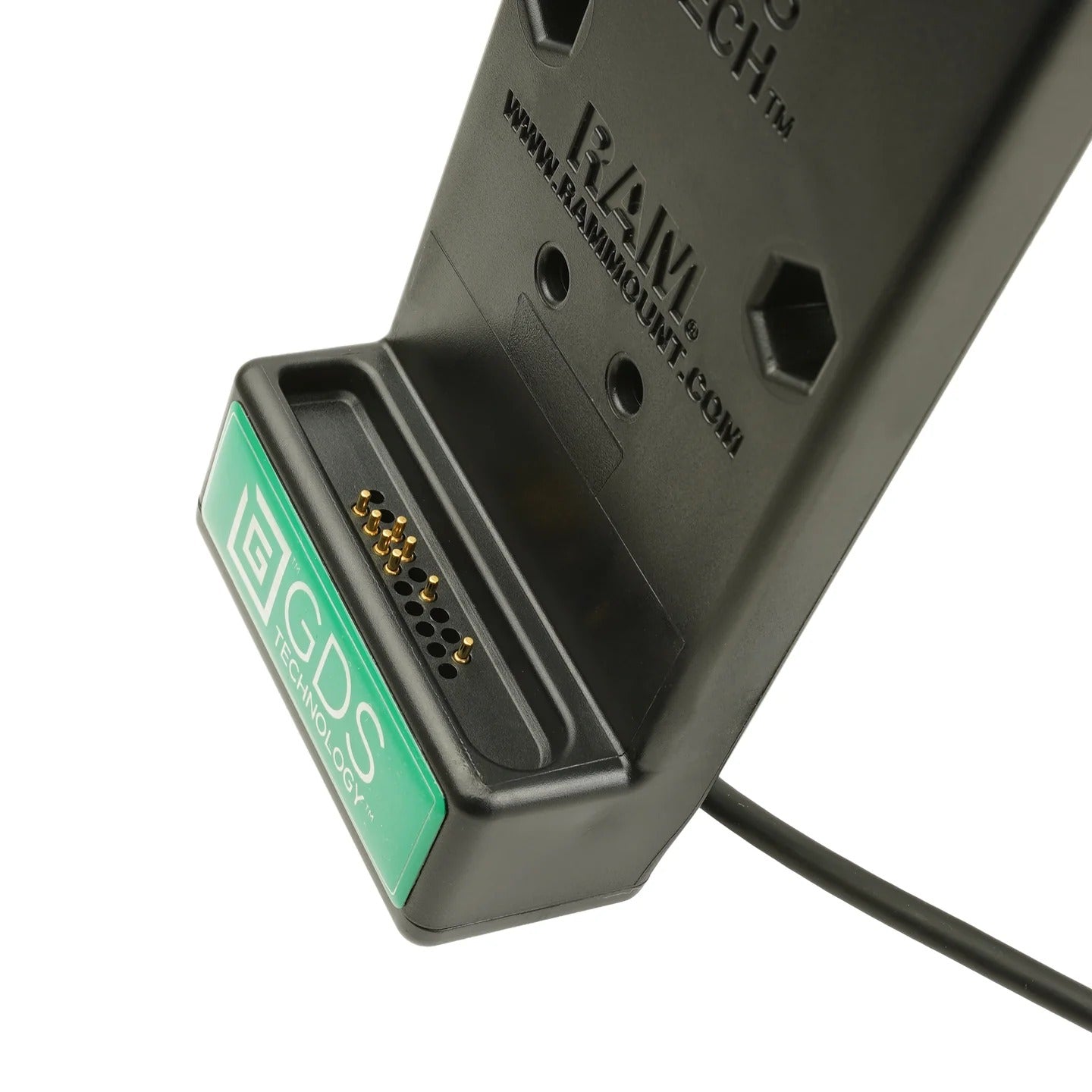

GDS® Vehicle Phone Dock with USB Type-C for IntelliSkin® Products - RAM-GDS-DOCK-V1CPU

The RAM® Universal Vehicle Phone Dock with GDS® Technology™ is a spring-loaded, quick release holder that offers a secure fit with easy access to the mounted phone. This docking station is compatible with any phone wrapped in an IntelliSkin®. This dock is engineered to support USB Type-C devices and has a USB Type-C port to connect to a power source. The integrated GDS® Technology™ platform enables charging of the mounted device and safely secures the phone in a variety of applications. Without the need to remove the IntelliSkin® from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged.

• Spring-loaded vehicle dock featuring GDS® Technology™ for data and fast charging capabilities for phones wrapped in IntelliSkin®; uses USB Type-C to connect to power
• Adjustable top cup accommodates any size phone wrapped in IntelliSkin®
• Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

HOLE PATTERN:
2-Hole AMPS: 1.912"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

OUTPUT VOLTAGE:
Type-C Devices: 5V - 12V @ 3A max
mUSB Devices: 5V @ 1.5A max

POWER OUTPUT:
15W

INPUT CONNECTOR:
USB Type-C

WARRANTY:
3 year warranty

WEIGHT:
0.4 lb
