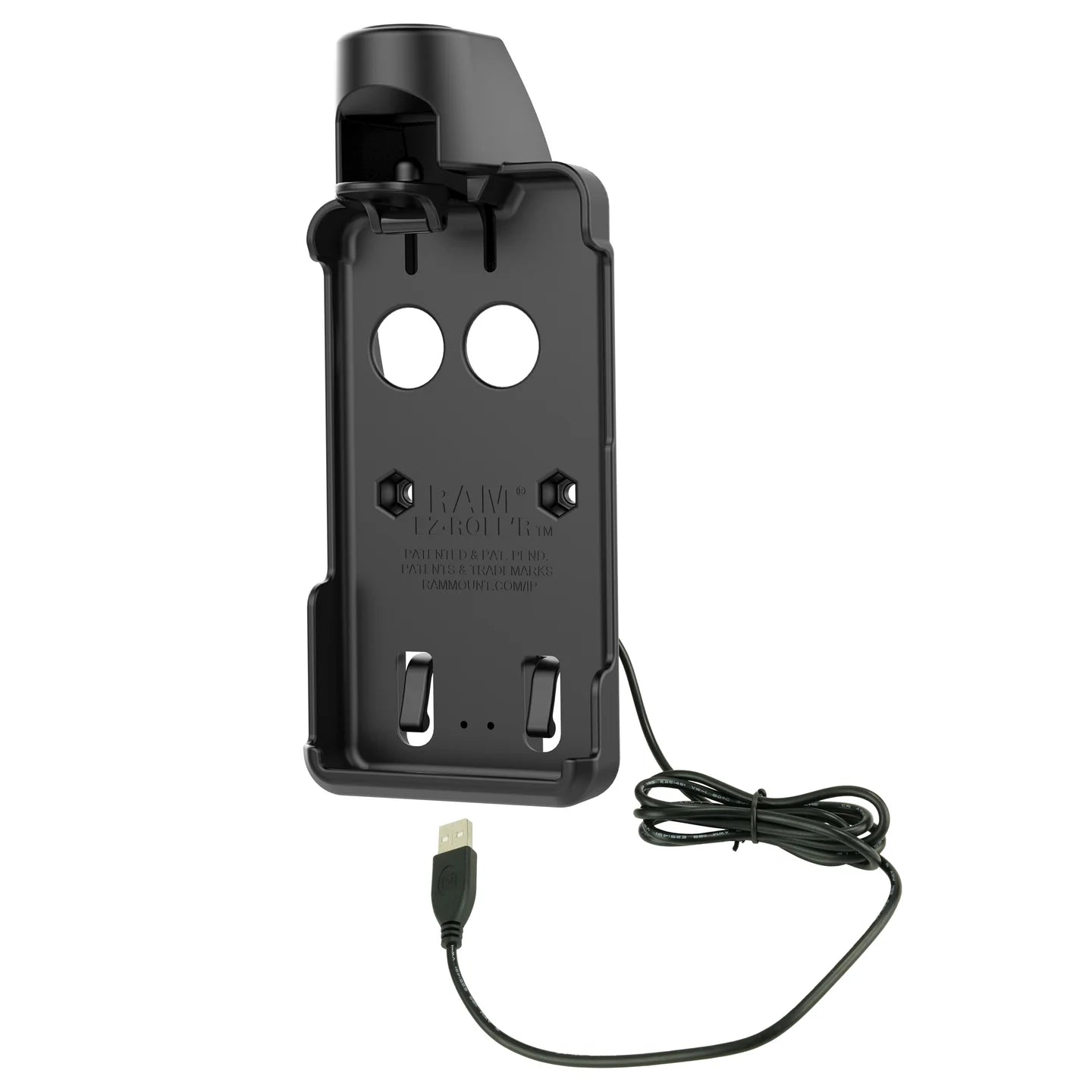

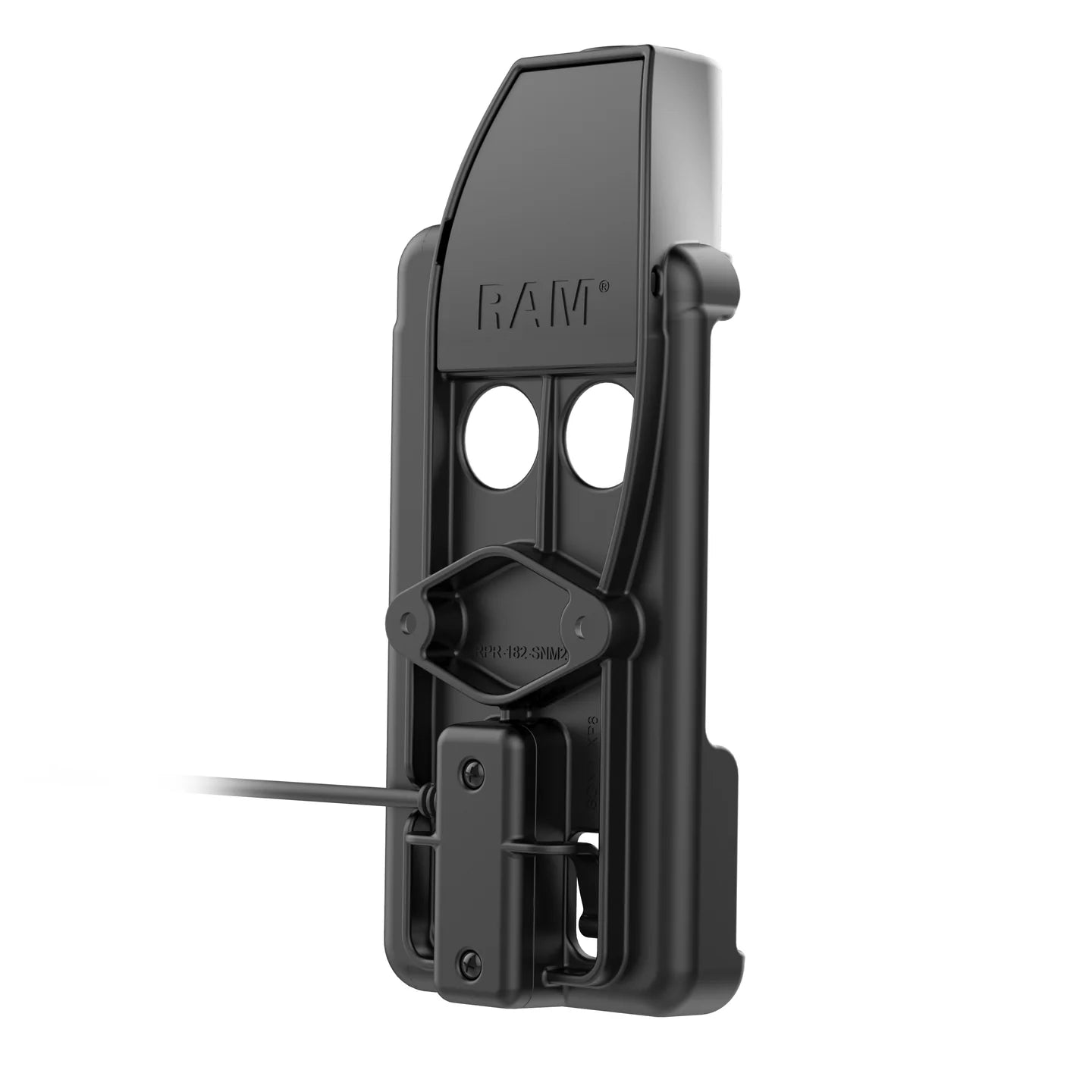

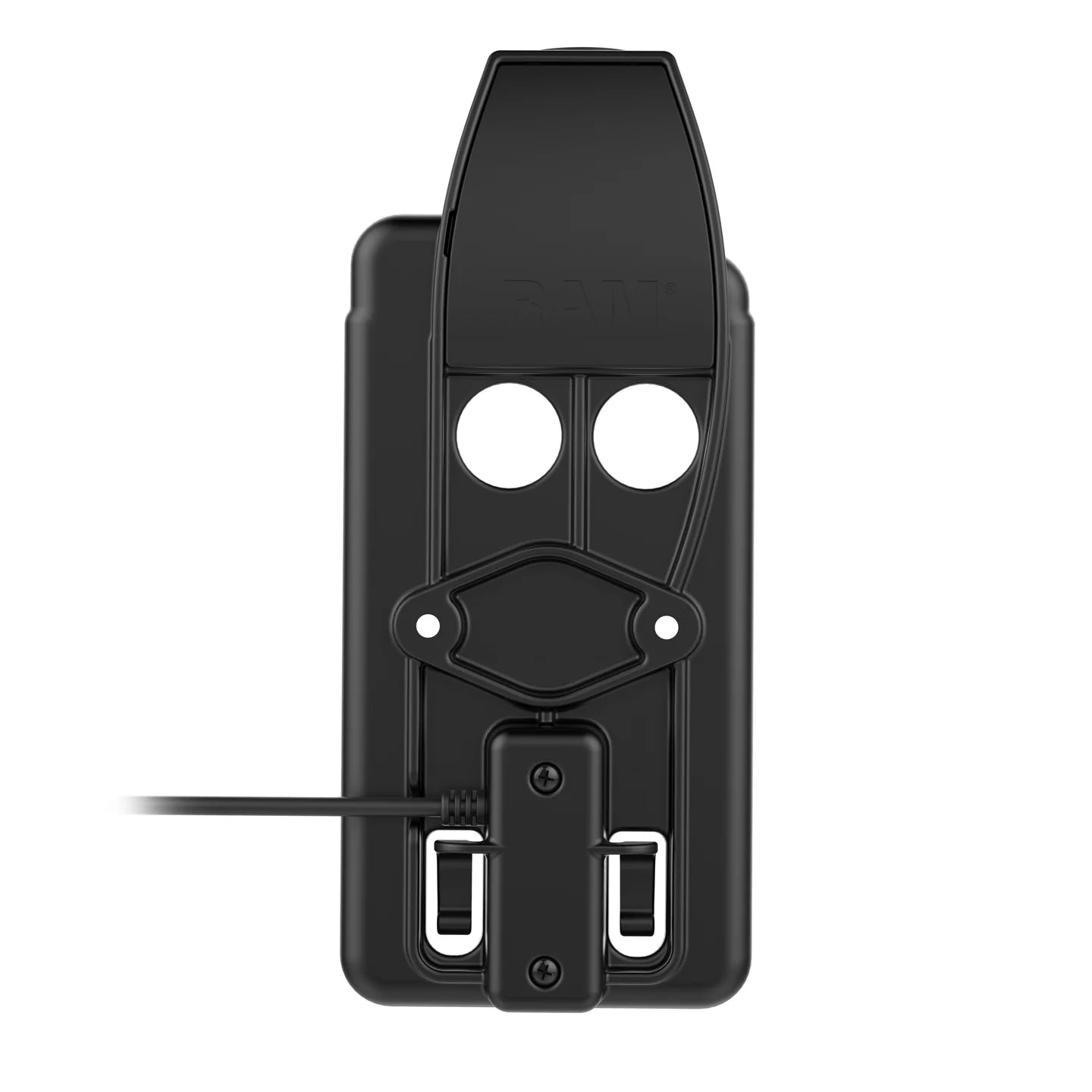

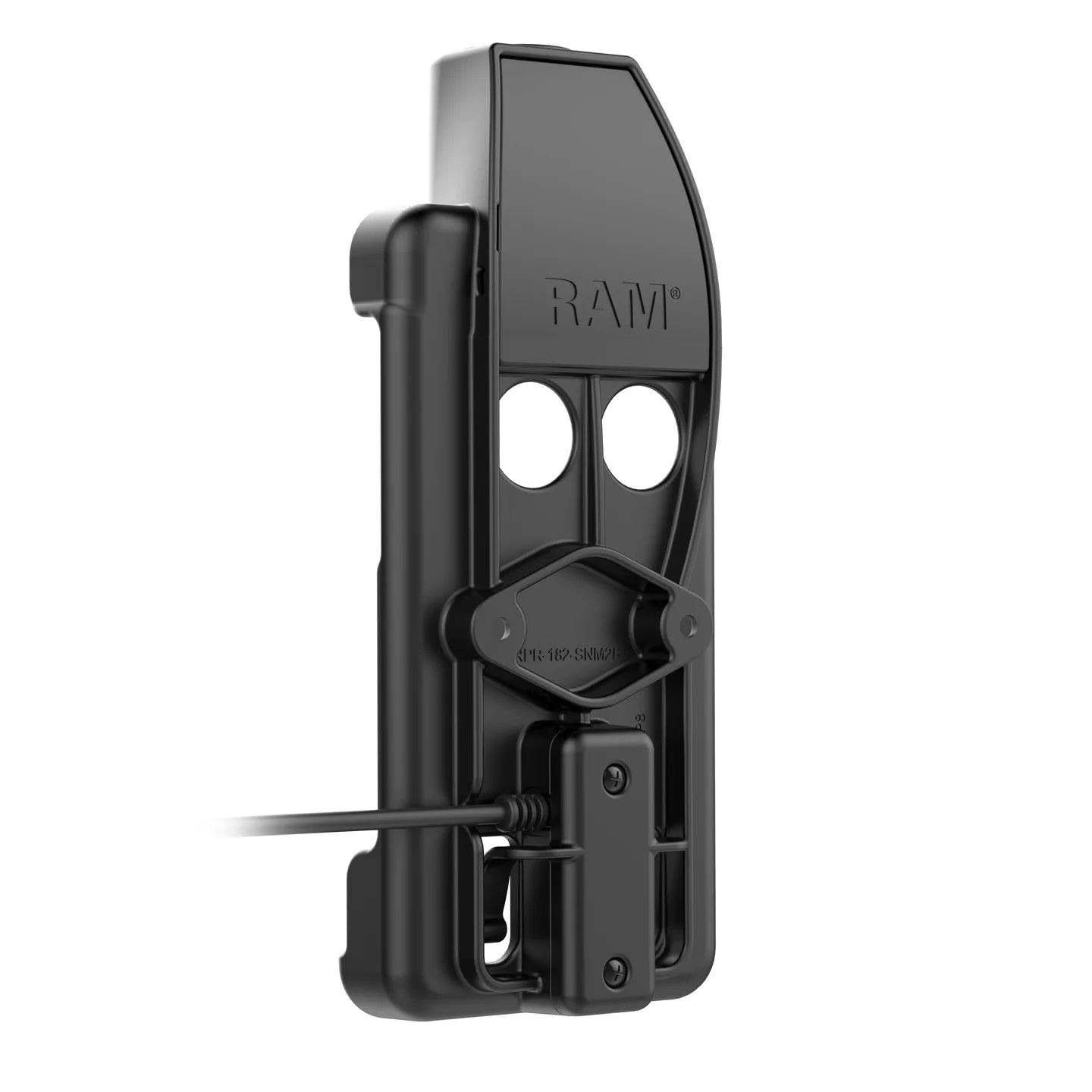

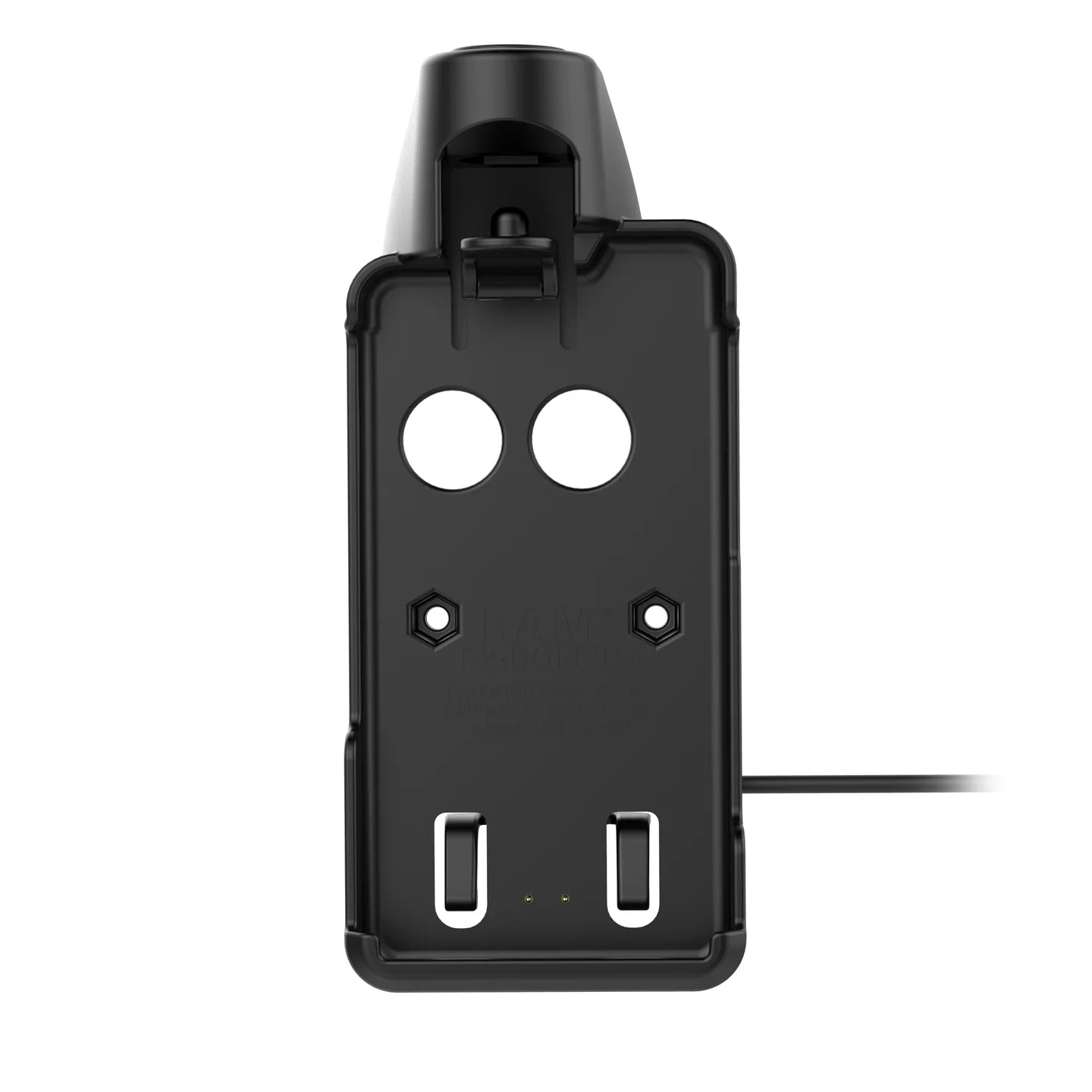

RAM® EZ-Roll'r™ Powered Dock for Sonim XP8 - RAM-HOL-SNM2PU

The RAM® EZ-Roll'r™ Powered Cradle for Sonim XP8 secures your device in a form-fit holder while keeping the entire screen and buttons visible and accessible. This powered cradle features two integrated pogo pins that provide charging capabilities to the device through male USB Type A connector. Single-handed operation makes it easy to dock and remove the Sonim XP8—simply lift the top lever and pull out the device, or place bottom portion of the device in first and push in to lock in place. Compatible with RAM® two-hole AMPS pattern bases and RAM® microphone brackets, this RAM® form-fit cradle easily connects to B and C size ball mounts for use in a wide variety of applications.

• Spring-loaded, powered RAM^® EZ-Roll'r^™ style form-fit cradle for the Sonim XP8 provides a perfect fit for your device without a case while keeping the device charged
• Single-handed docking and removal of device
• Compatible with B and C size RAM^® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Backed by a 3-year warranty

HARDWARE INCLUDED:
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

HOLE PATTERN:
2-Hole AMPS: 1.912"

MATERIALS:
High strength composite

PACKAGING TYPE:
Poly Bag

INPUT CABLE LENGTH:
1.25 Meters

COMPLIANCE:
Made from ABS-V0 that conforms to UL 94-V0 flammability tests

WARRANTY:
3 year warranty

WEIGHT:
0.4 lb

COMPATIBLE DEVICES

• Sonim:

  XP8
