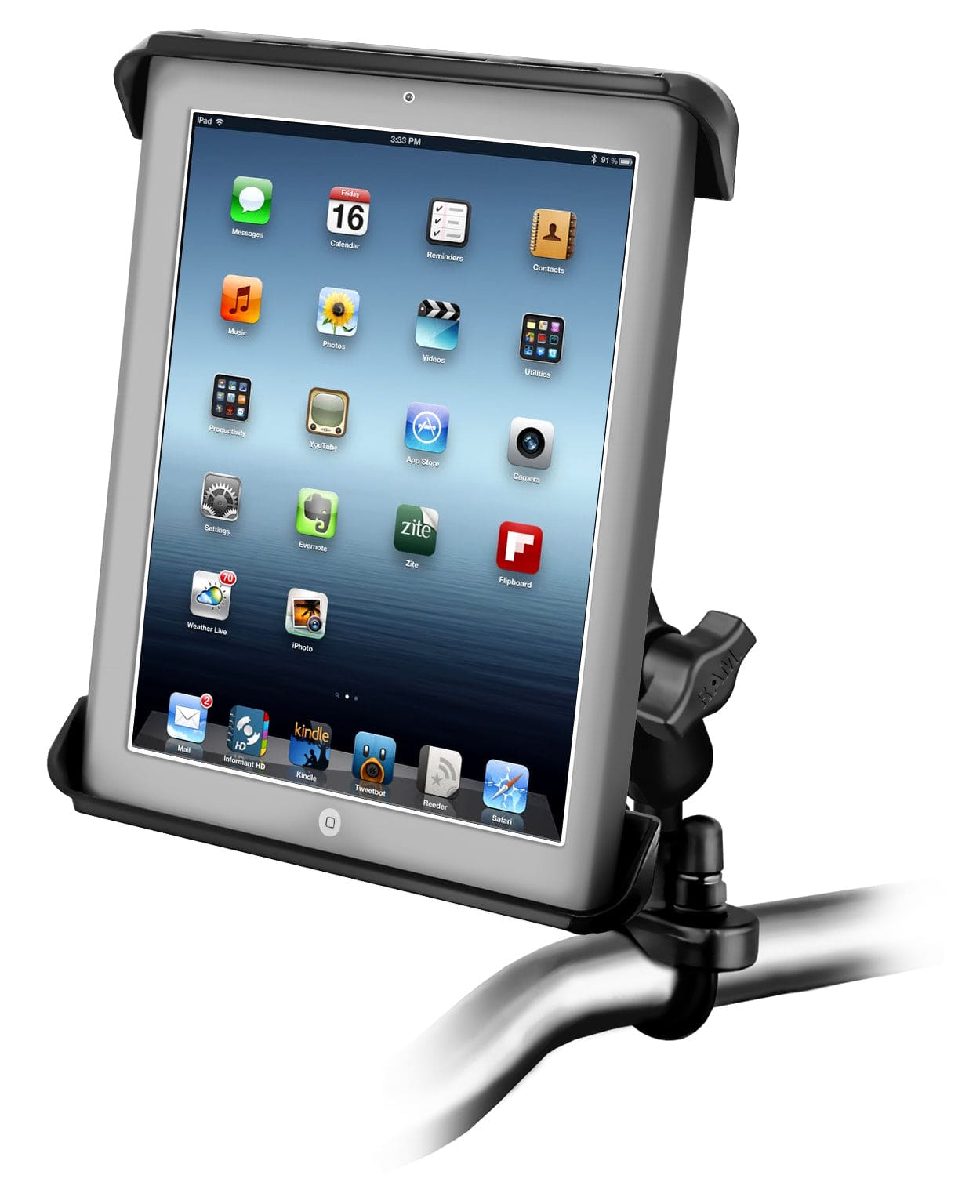

RAM® Tab-Tite™ Handlebar U-Bolt Mount for Large Tablets - RAM-B-149Z-TAB-LG

The RAM-B-149Z-TAB-LG consists of a zinc coated u-bolt base, standard length double socket arm, diamond adapter base and universal Tab-Tite^™ cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. With 2 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your mobile device.

Cradle Dimensions for Thin Tablets:
Height: 8.5" to 10.75"
Width: up to 7.75"
Depth: up to 0.56"

Cradle Dimensions for Thick Tablets:
Height: 8.75" to 10.75"
Width: up to 8.25"
Depth: up to 1.10"

U-Bolt Dimensions:
0.50" to 1.25"

Purchase Includes:
(QTY. 1), Spring loaded back plate
(QTY. 2), Support cups for thin tablets
(QTY. 2), Support cups for thick tablets
(QTY. 1), Mounting hardware

Material:
High Strength Composite

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
1.1 lbs.

 Tab-Tite Assembly Guide - PDF

RAM® Tab-Tite™ Rugged Tablet Holder - Installation Guide

RAM Handlebar Rail Mount with Zinc U-Bolt Base & Round Base Adapter

High Speed Test - RAM Dual Articulating Suction Cup Mounting System and Tab-Tite Tablet Holder

Tablet Holder - RAM Tab-Tite™ Holder for Tablets with Heavy Duty Cases

Additional Mounting Base Options

RAM Yoke Clamp Base With 1" Rubber Ball - RAM-B-121BU

RAM Motorcycle Brake/Clutch Reservoir Base with 1" Ball - RAM-B-309-1U

RAM V-Shape Base with 1" Ball for Rails and Yokes - RAM-B-108BU

RAM 3.3" Diameter Suction Cup Base with B Size 1" Ball - RAM-B-224-1U

RAM Motorcycle Handlebar Clamp Base with M8 Screws - RAM-B-367U

RAM® Torque™ 1 1/8" - 1 1/2" Diameter Handlebar/Rail Base With 1" Ball - RAM-B-408-112-15U

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

RAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346U

RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

RAM Rail Base With B Size 1" Ball. Zinc Coated U-Bolt For Rails From 0.5" To 1.25" In Diameter - RAM-B-231ZU

RAM Tab-Tite™ Cradle for 10" Screen Tablets including the Apple iPad 1-4 with LifeProof nüüd Cases & Lifedge Cases - RAM-HOL-TAB-LGU

RAM 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball - RAM-B-202U

• 10" Tablets with LifeProof nuud cases
• 10" Tablets with Lifedge cases
• 10" Tablets with Heavy duty cases
• Apple iPad 4 (With Lightning Connector)
• Apple iPad 3
• Apple iPad 2
• Apple iPad 1
