RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter - RAM-B-174-GA63U

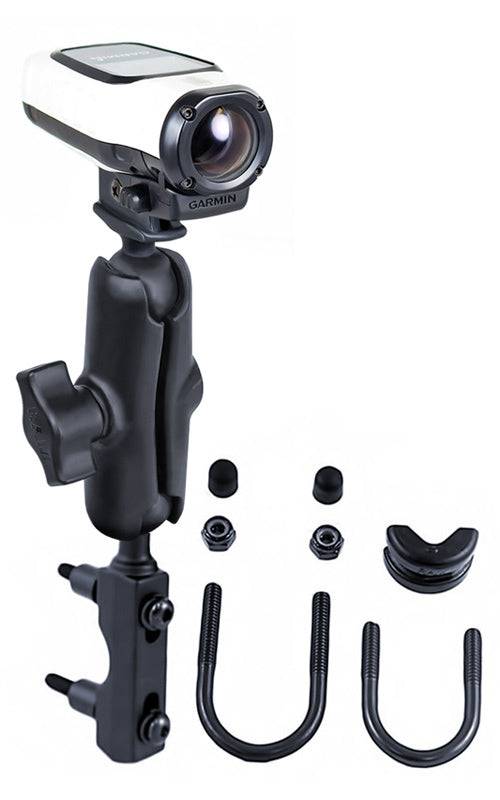

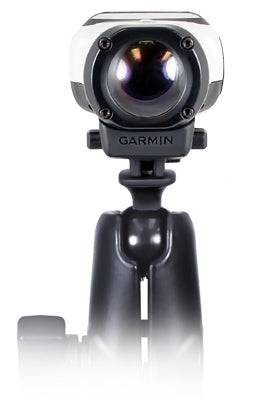

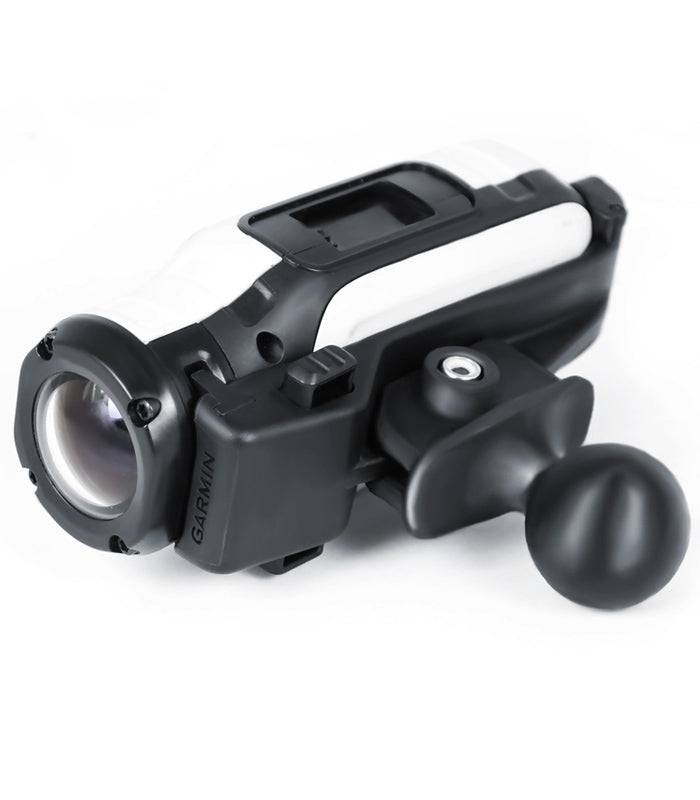

The RAM-B-174-GA63U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and Garmin VIRB^™ camera adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.

Material:
High Strength Composite & Powder Coated Marine Grade Aluminum

Ball Size:
B Size 1" Rubber Ball

Note:
The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".

Weight:
0.83 lbs.
