      Home / Products / RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices - RAM-B-149Z-2-AQ1
      RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices - RAM-B-149Z-2-AQ1 - OC Mounts
      RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices - RAM-B-149Z-2-AQ1 - OC Mounts
      RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices - RAM-B-149Z-2-AQ1 - OC Mounts
      RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices - RAM-B-149Z-2-AQ1 - OC Mounts

      RAM-B-149Z-2-AQ1

      RAM® Aqua Box® ATV/UTV Rail Mount for Large Devices - RAM-B-149Z-2-AQ1

      Out of Stock    ( Chat Live to get an ETA )

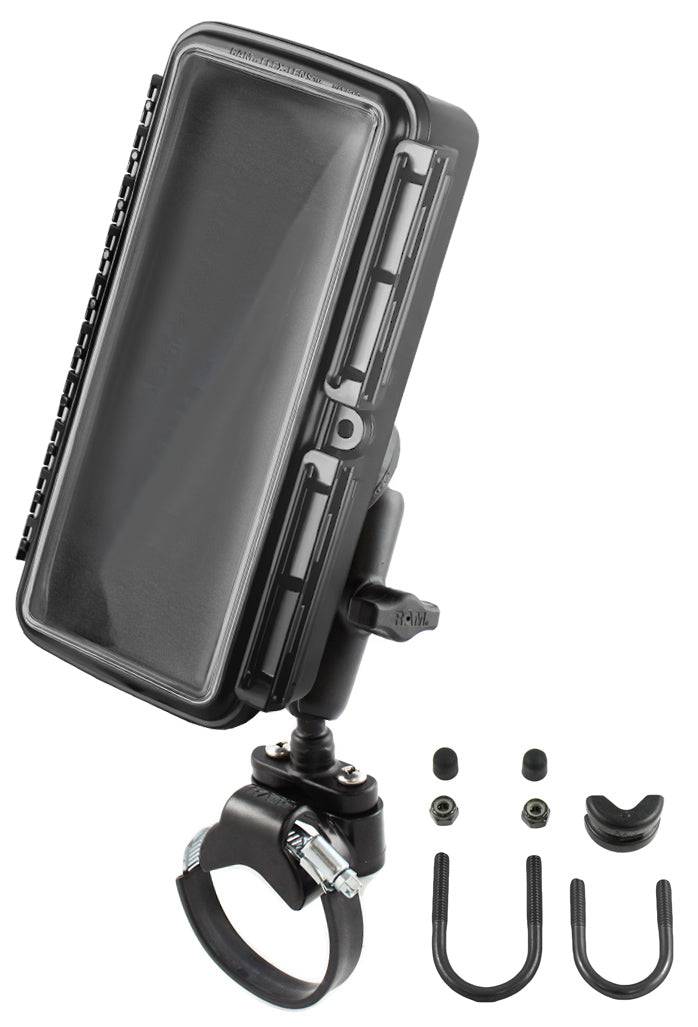

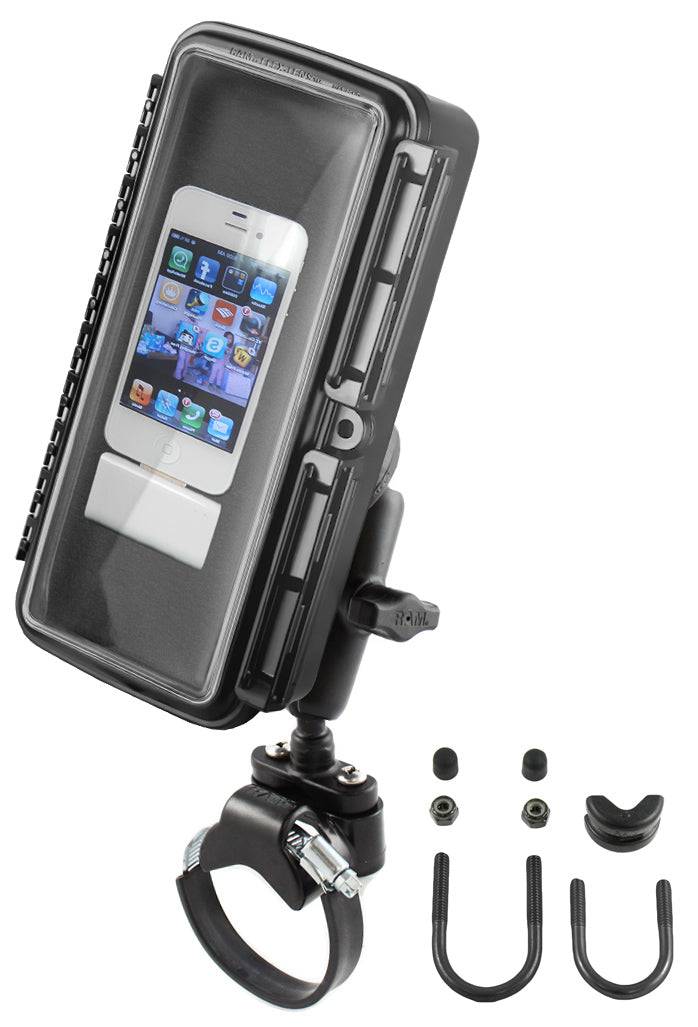

      RAM UTV/ATV strap mount with large size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The strap base accommodates rails from 40mm (Min) to 80mm (Max) in diameter.

      AQUA BOX® Internal Dimensions:

      Width: 3.25"
      Height: 8.25"
      Depth: 2.81"

      AQUA BOX® External Dimensions:

      Width: 4.5"
      Height: 8.75"
      Depth: 3"

      Rail Accommodation Dimensions:
      Mount with Strap: 1.57" to a maximum of 3.15"
      Mount with U-Bolt: 0.50" to a maximum of 1.25"

        Material:
        High Strength Composite and Powder Coated Marine Grade Aluminum

        Ball Size:
        B Size 1" Rubber Ball

        Note:
        Part number reflects product packaged in clear clam shell for store shelf display.

        Weight:
        1.89 lbs.
