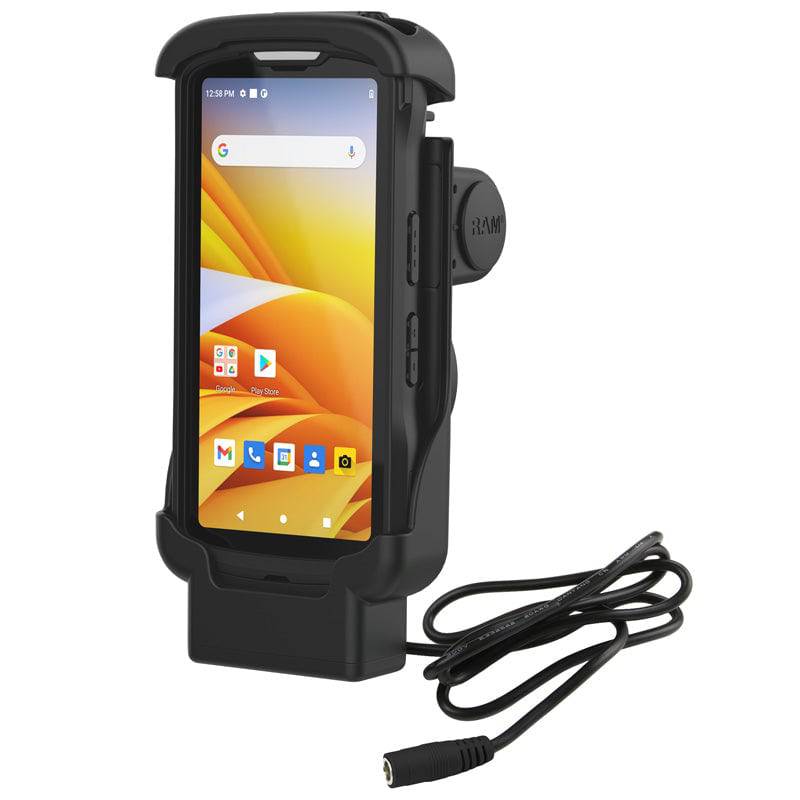

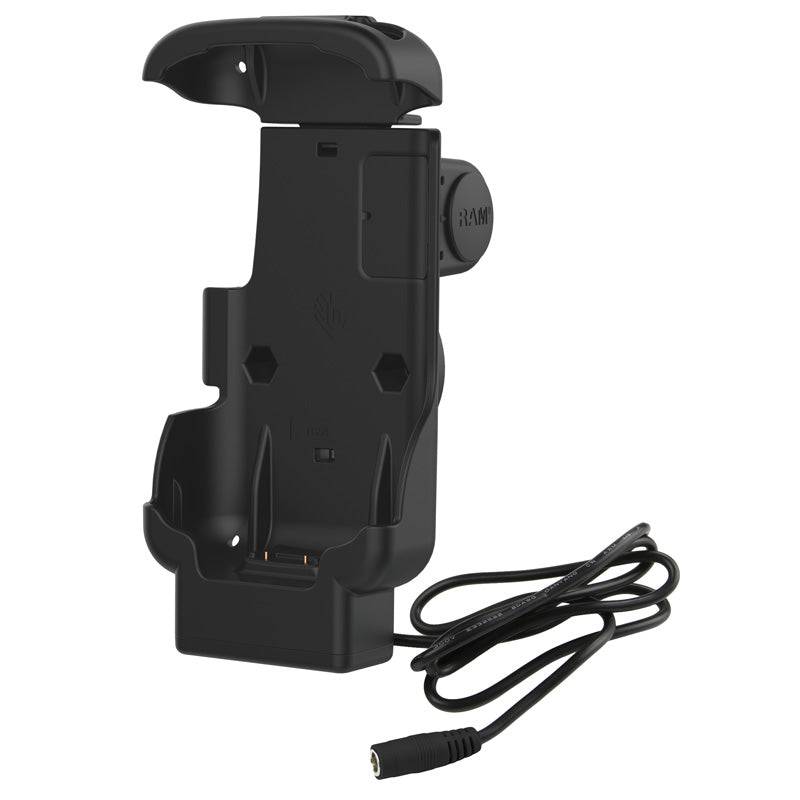

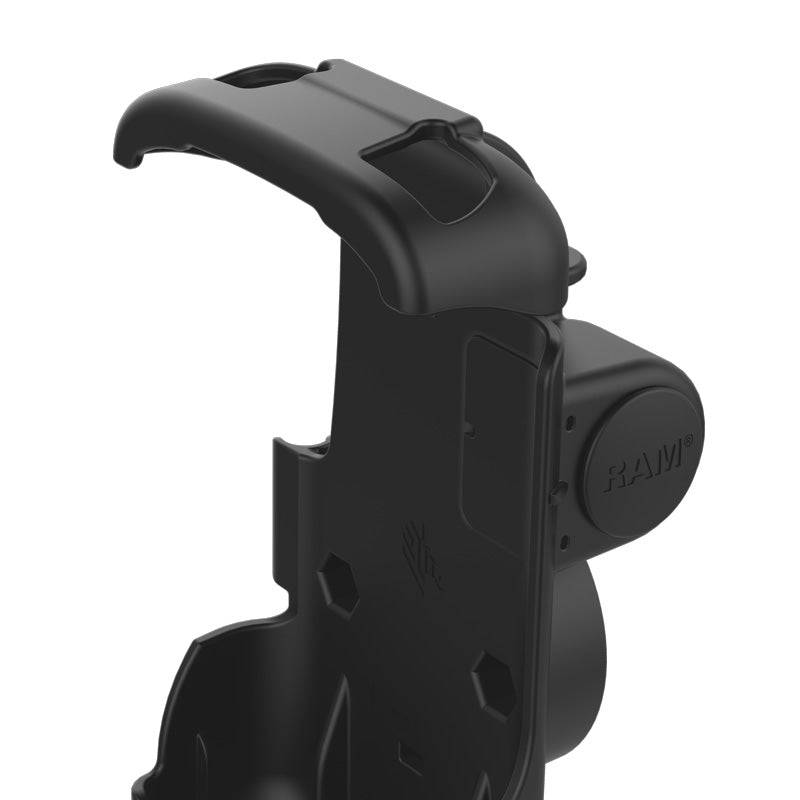

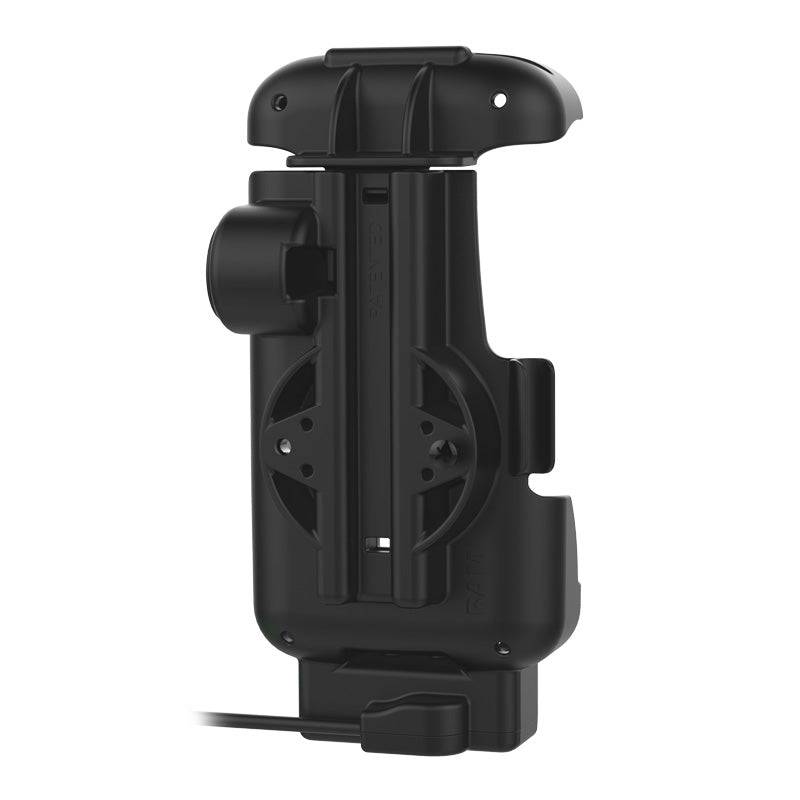

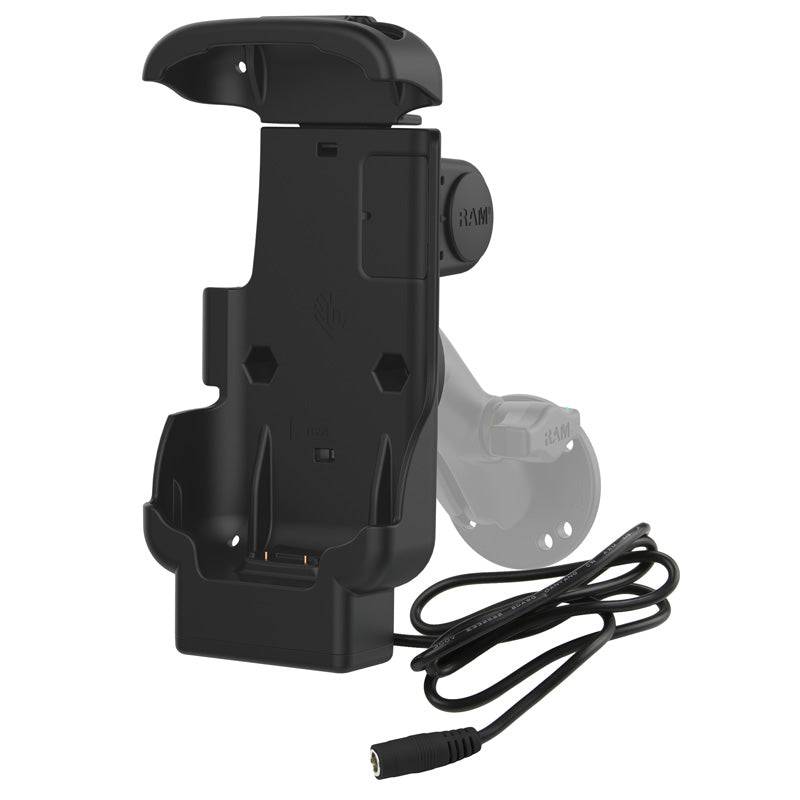

RAM® Form-Fit Powered Dock for Zebra TC53 & TC58 - RAM-HOL-ZE17-2U

OVERVIEW

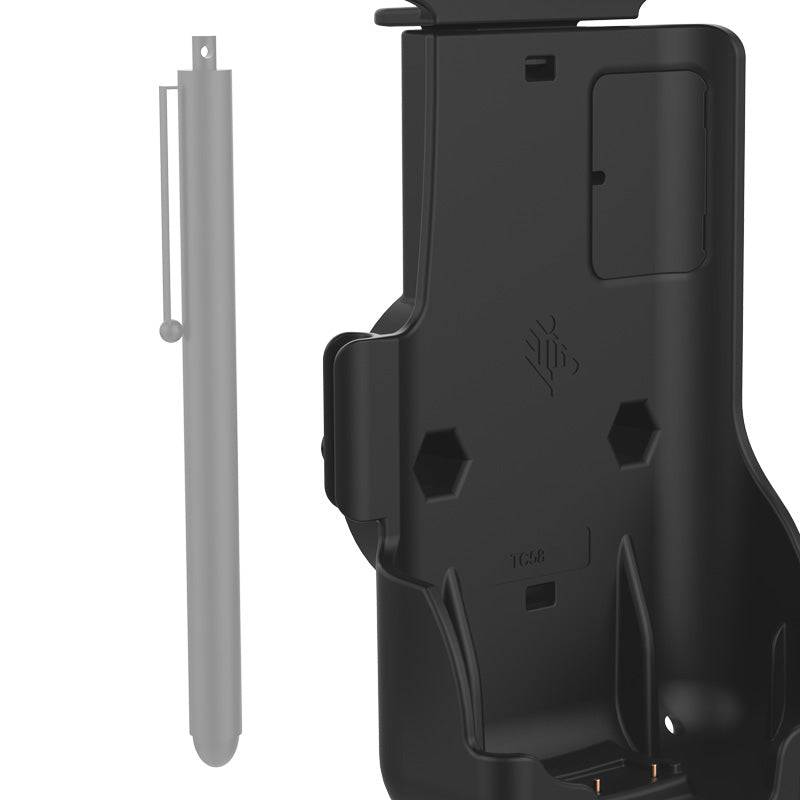

This spring-loaded form-fit dock allows you to secure and charge the newest model of the Zebra TC5X line, the TC53, and the TC58 with or without the Zebra rugged boot. Features include an integrated stylus holder that snaps your stylus into place while not in use, as well as a standard 1.2m long DC Female cable that delivers charging capabilties. Speaker and mic are fully accessible while the device is docked, and will accomodate the Zebra hand strap. The dock is compatible with RAM^® two-hole AMPS pattern diamond bases that will connect to B and C size ball mounts, allowing for a wide variety of mounting options (hardware included).

HARDWARE INCLUDED

(1) Top Cup Insert
(2) Bottom Cup Insert Options
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

HOLE PATTERN

2-Hole AMPS: 1.912"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT CONNECTOR

5.5mm DC Connector

INPUT CABLE LENGTH

1.25 Meters

WEIGHT

0.77 lbs.

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

Chargers not included. See "Expand Your RAM®" tab to view compatible charging accessories.
