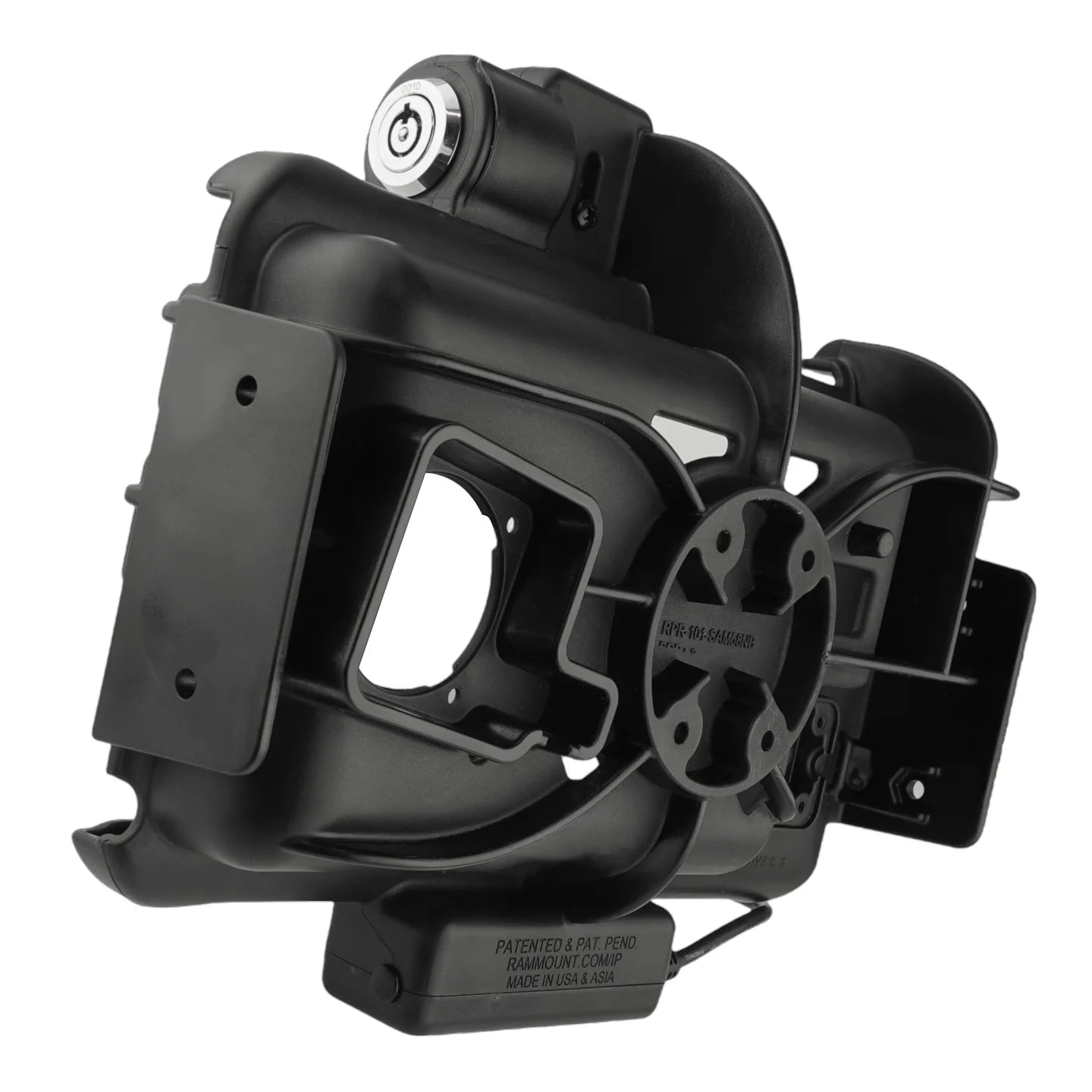

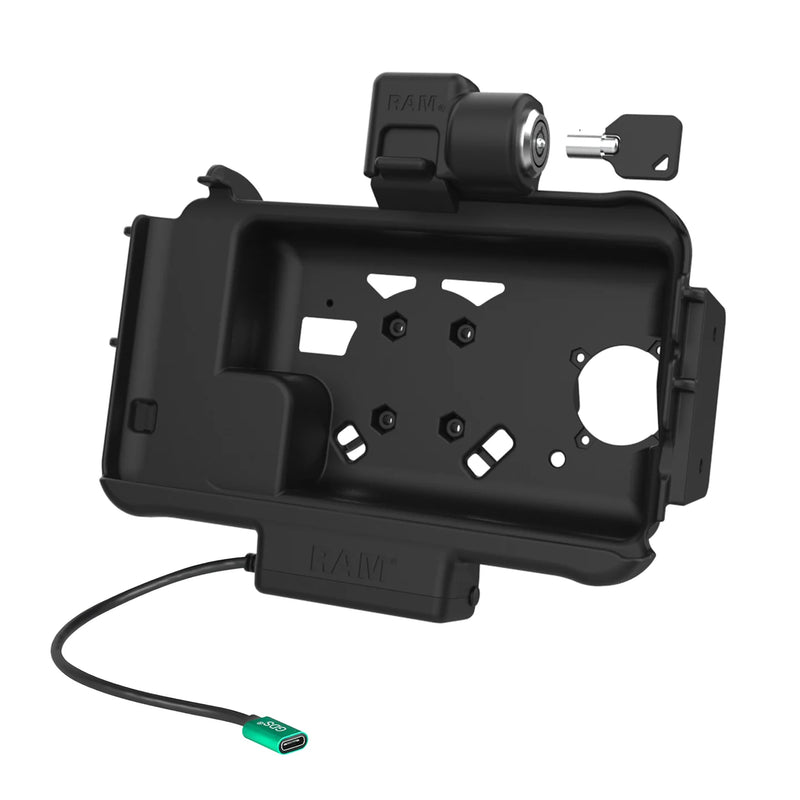

RAM® Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3 - RAM-HOL-SAM58CPKLNU

The RAM® Locking Modular Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience.

This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

• Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable

• Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments

• Compatible with the Samsung OEM skin as well as the RAM® Skin™

• Backed by a 3-year warranty

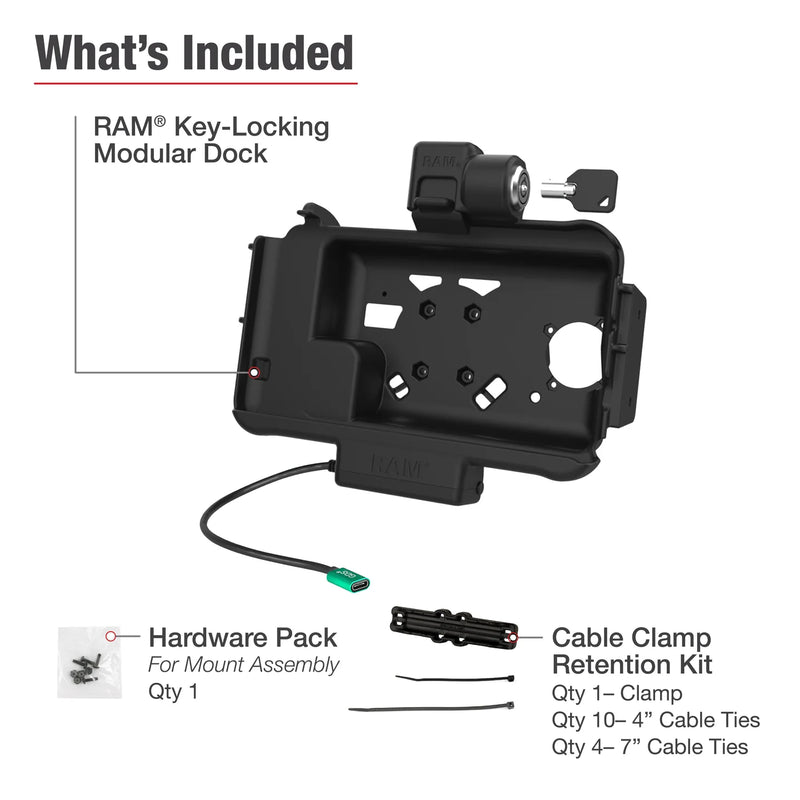

HARDWARE INCLUDED
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
USB Type-C Female

INPUT CABLE LENGTH
215mm

WARRANTY
3 year warranty

WEIGHT
1.04 lb

IMPORTANT INFORMATION
This dock is not compatible with the GDS® Hand-Stand™.
