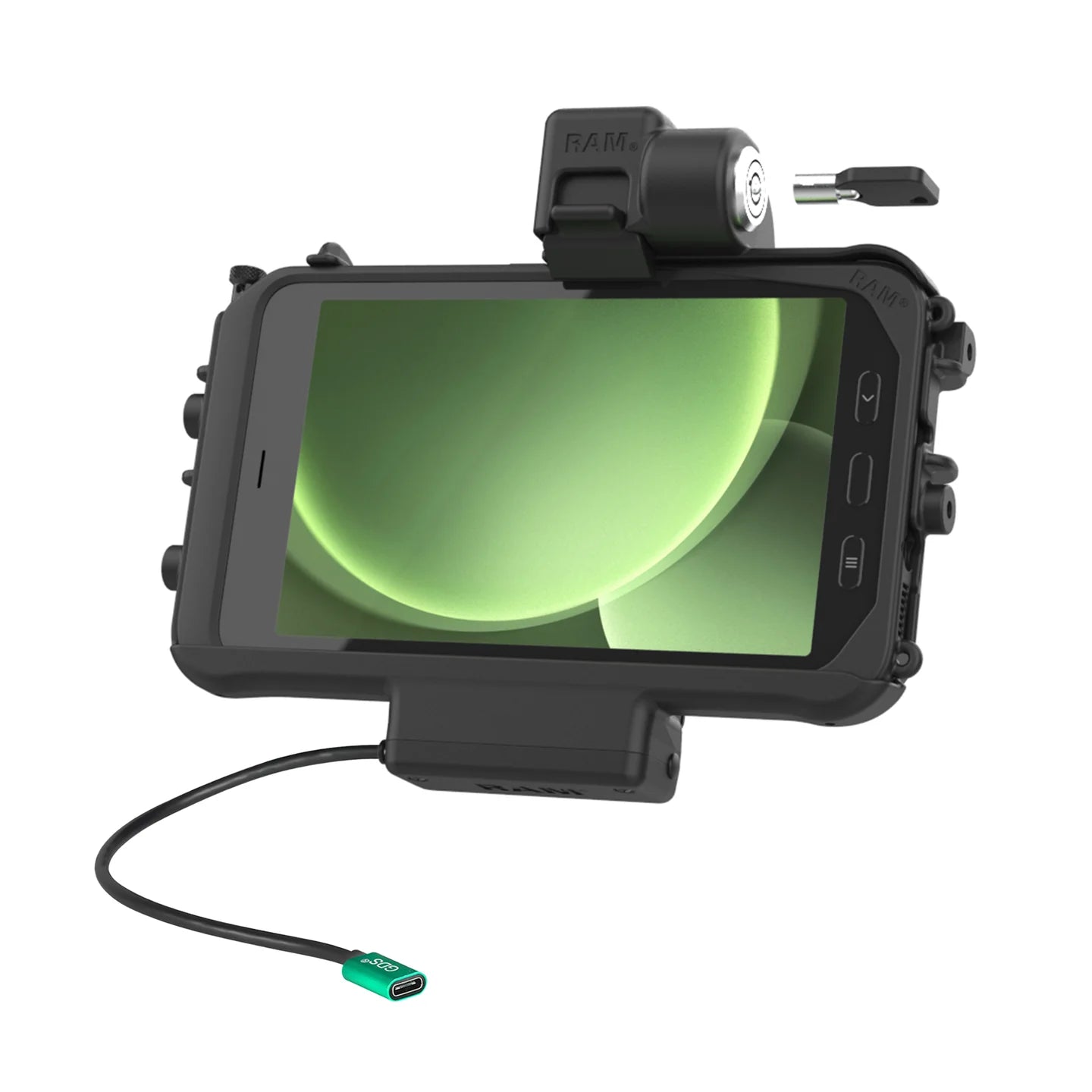

RAM® Low-Profile Locking USB-C Powered Dock for Tab Active5 & 3 - RAM-HOL-SAM58CPKLTU

The low-profile RAM® Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience.

This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

• Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

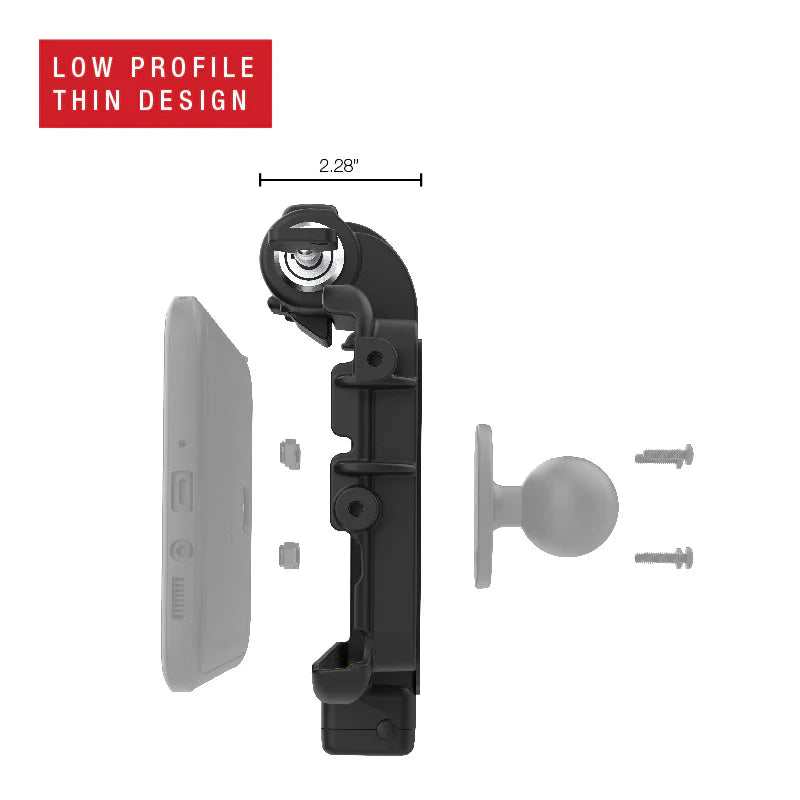

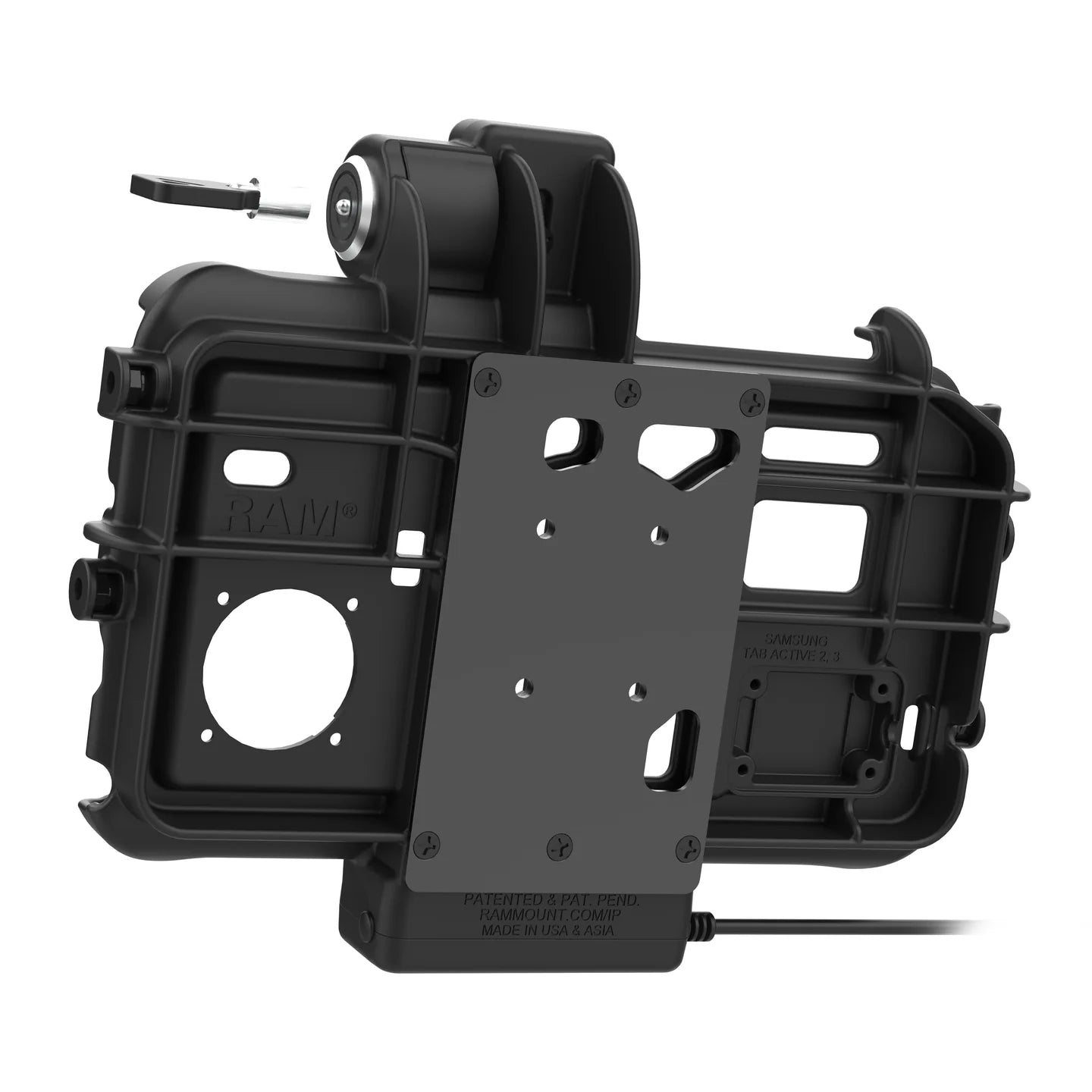

• Slim-profile design at 2.28" depth with metal reinforcement plate

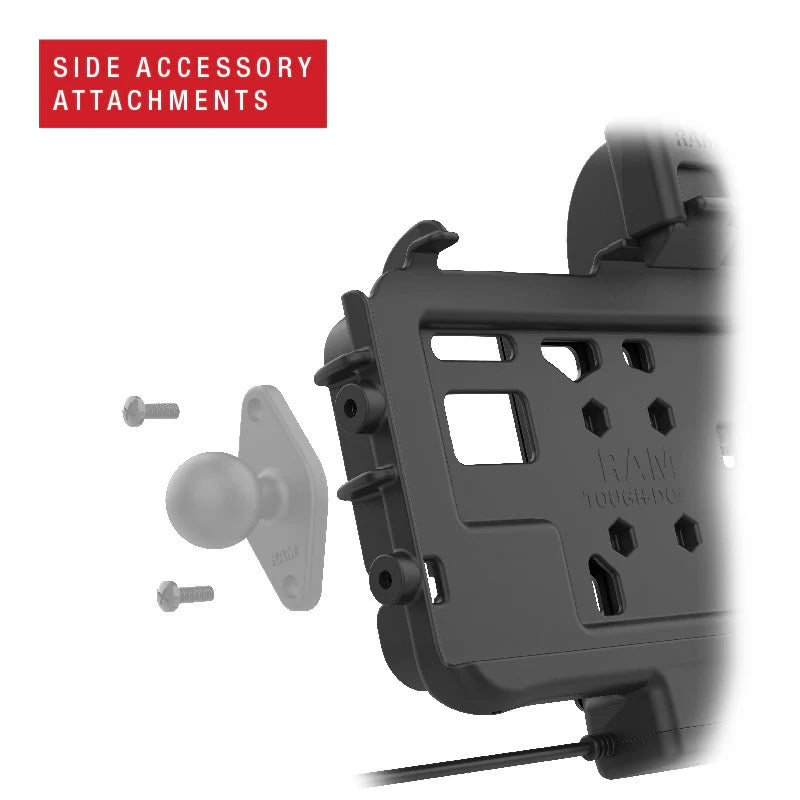

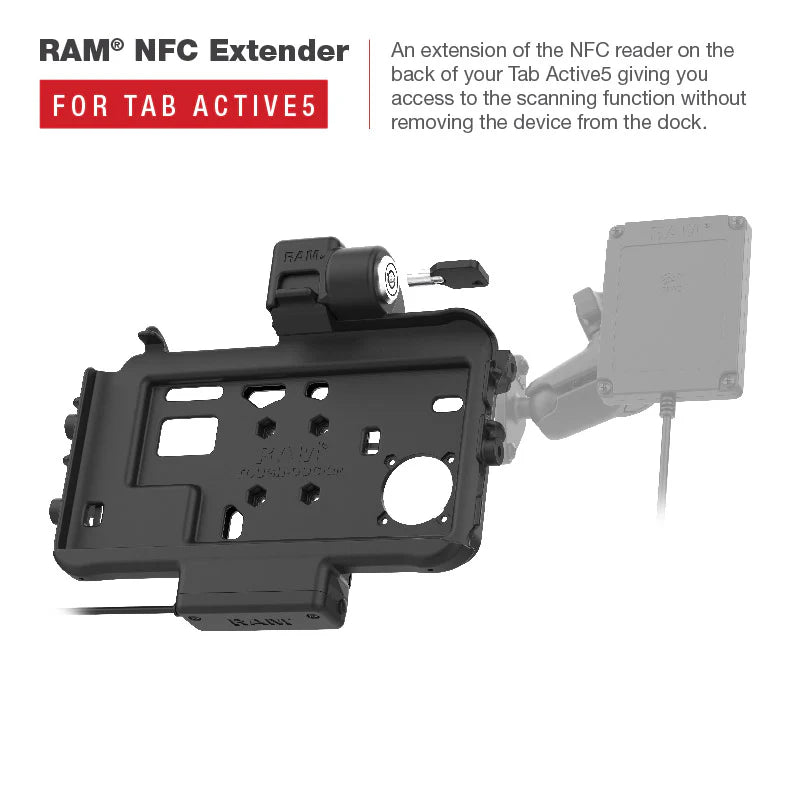

• Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments

• Provides charging connectivity through integrated pogo pin technology and USB-C cable

• Backed by a 3-year warranty

HARDWARE INCLUDED
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
USB Type-C Female

INPUT CABLE LENGTH
215mm

WARRANTY
3 year warranty

WEIGHT
1.04 lb

ADDITIONAL INFORMATION
This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
