RAM® USB-C Low-Profile Dock + USB-A & RJ45 Data for Tab Active5 & 3 - RAM-HOL-SAM58CPKLT-RJ45AU

The RAM® USB-C Low-Profile Dock + USB-A & RJ45 Data for Tab Active5 & 3 (RAM-HOL-SAM58CPKLT-RJ45AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience.

Add one peripheral and maintain a secure inernet connection with the built-in dual USB Type-A and RJ45 (ethernet) cord. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner.

Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern and one cable clamp with zip ties for cable management.

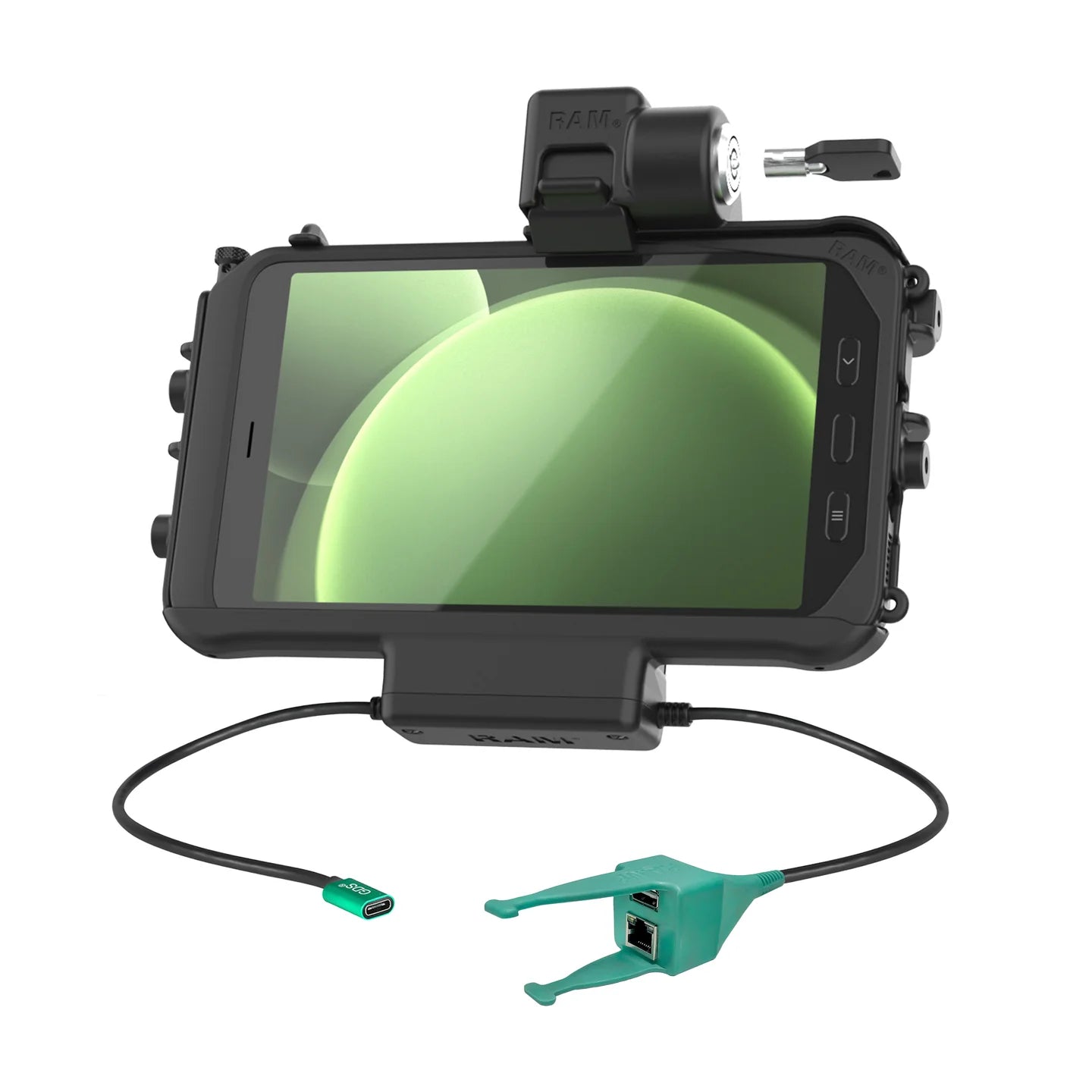

• Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & 3 wrapped in a Samsung OEM protective case or RAM® Skin™

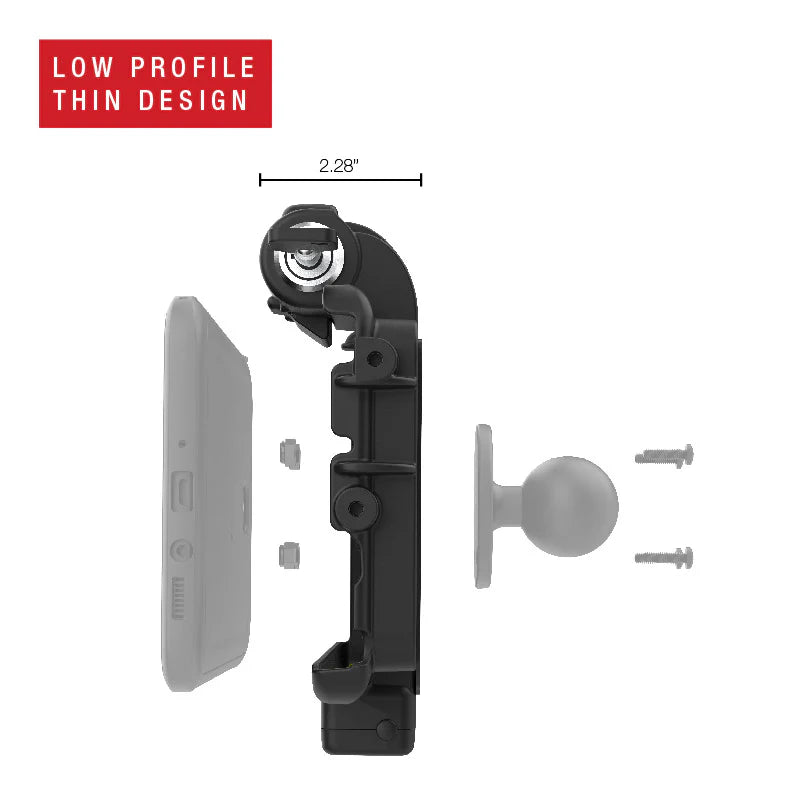

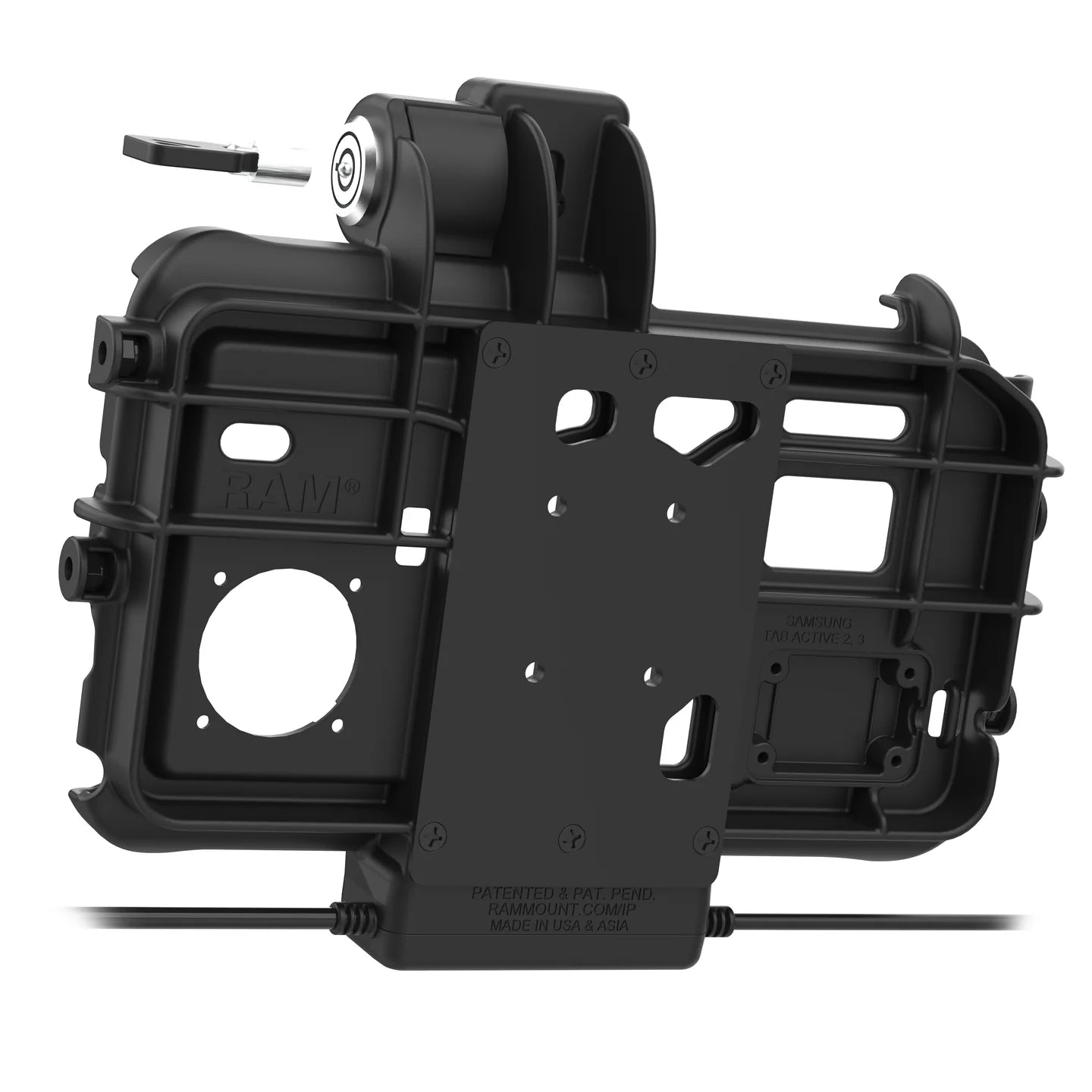

• Slim-profile design at 2.28" depth with metal reinforcement plate

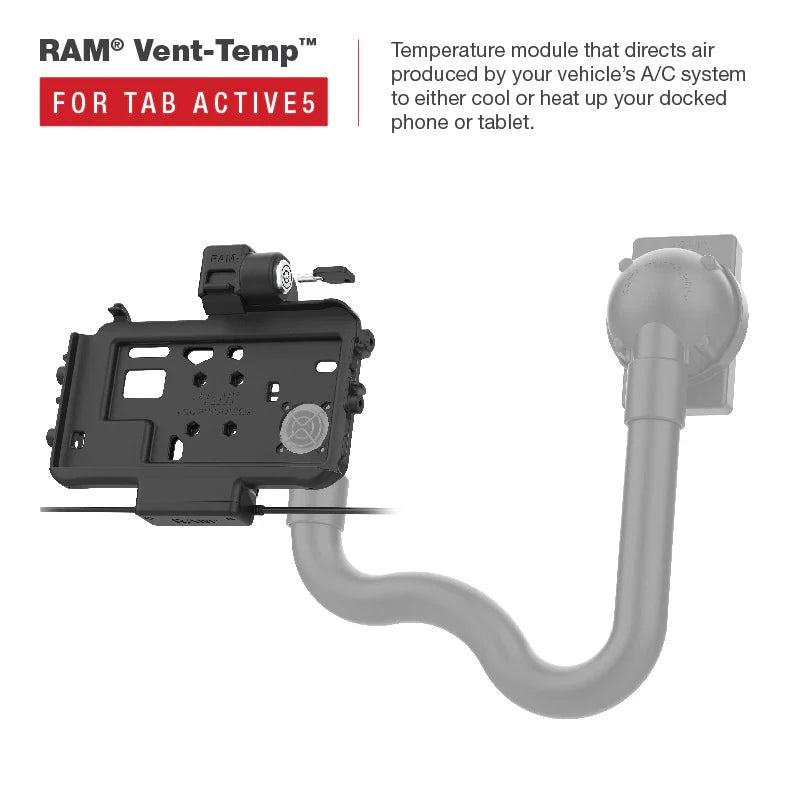

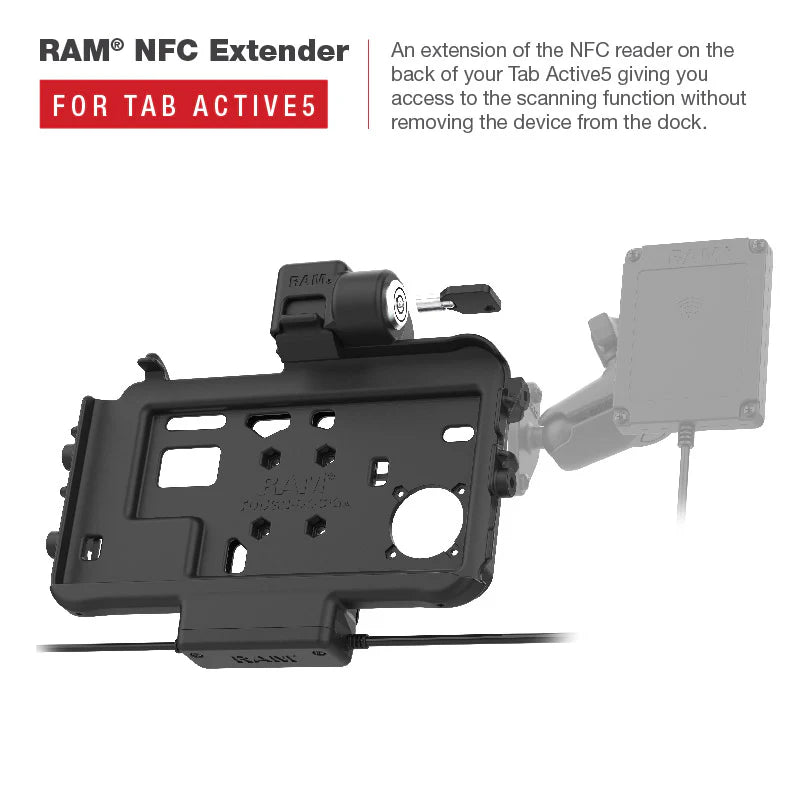

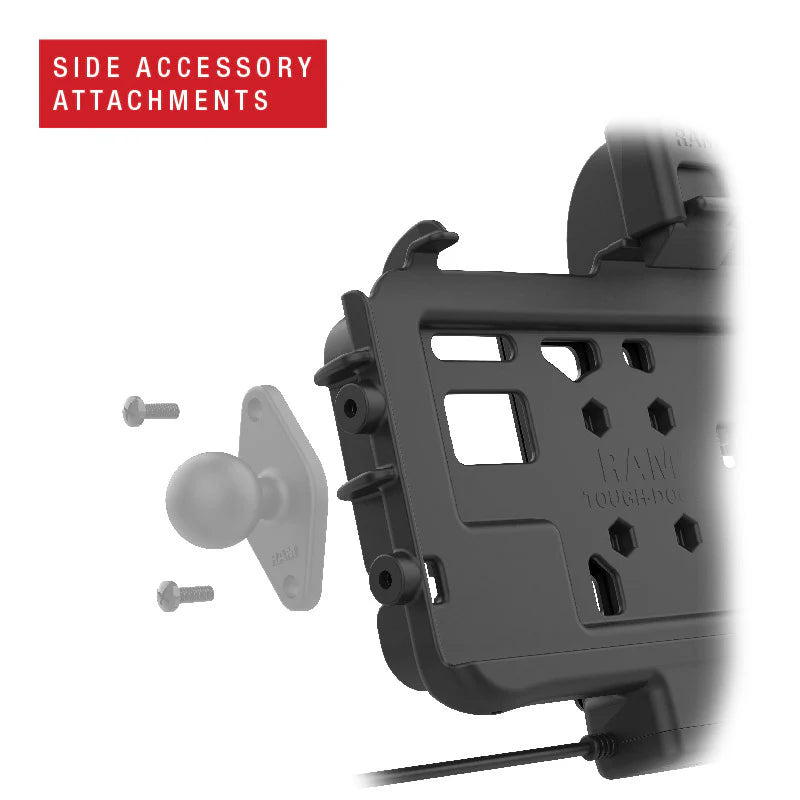

• Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments

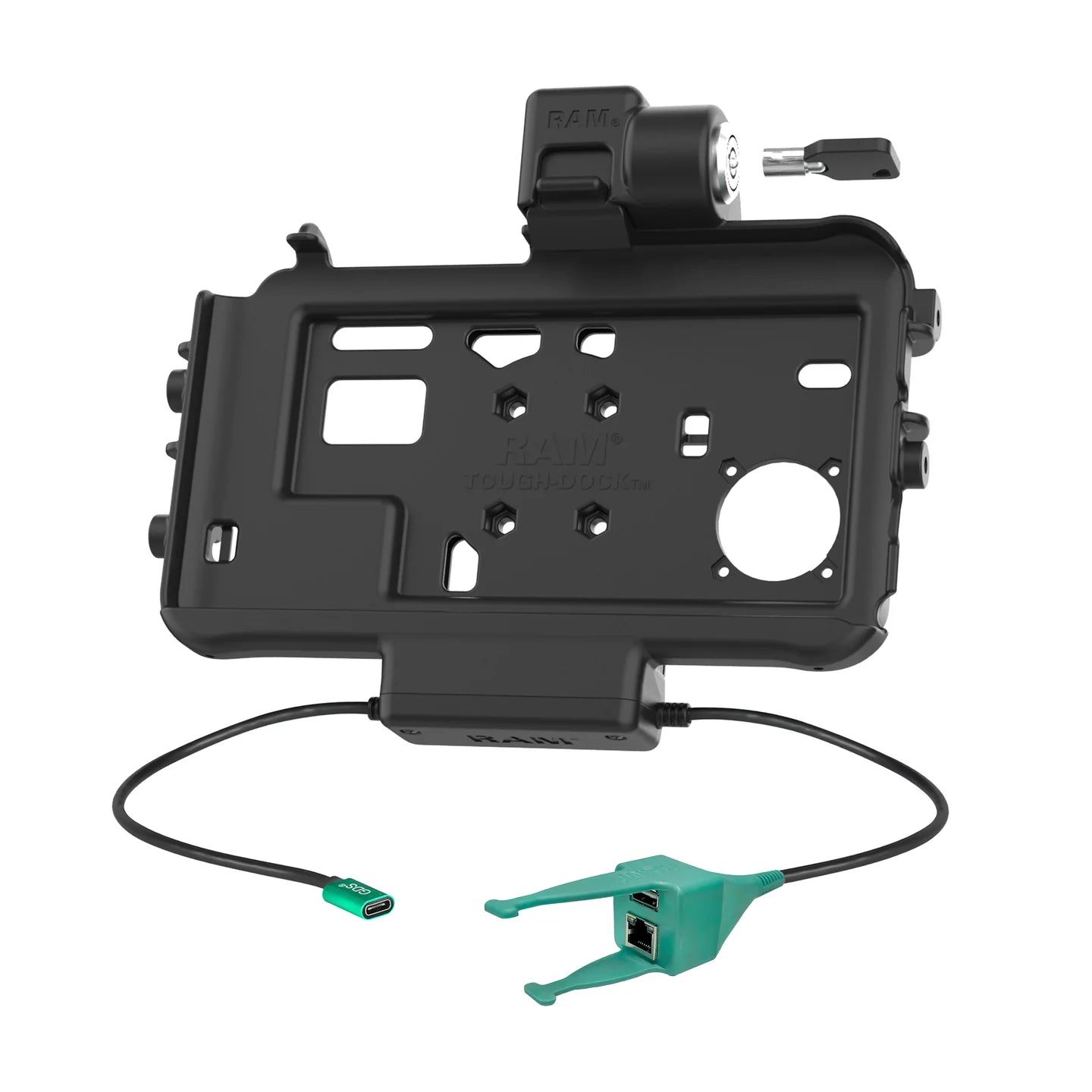

• Power delivered via USB-C connector; connect up to one input device and ethernet via dual USB-A and RJ45 connector

• Backed by a 3-year warranty

HARDWARE INCLUDED
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

MATERIALS
High strength composite

PACKAGING TYPE
Poly Bag

INPUT VOLTAGE
5.3-5.4VDC

OUTPUT VOLTAGE
5VDC

POWER OUTPUT
500mA

INPUT CONNECTOR
USB Type-C Female

INPUT CABLE LENGTH
215mm

OUTPUT CONNECTOR
(1) USB-A Female
(1) RJ45

OUTPUT CABLE LENGTH
215mm

PERIPHERAL OUTPUT
900mAh

TRANSFER SPEED
480Mbps

WARRANTY
3 year warranty

WEIGHT
1.44 lb

IMPORTANT INFORMATION
This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
