RAM-B-149Z-UN4U

RAM® Finger-Grip™ Universal Mount with Handlebar U-Bolt Base - RAM-B-149Z-UN4U

$75.99 $84.99

In Stock - Ships for Free!

Description

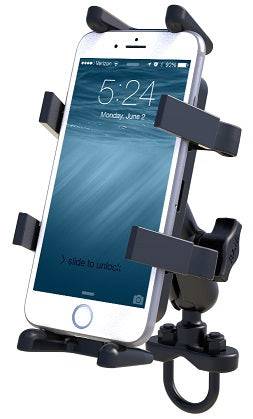

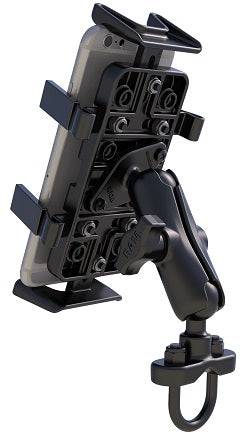

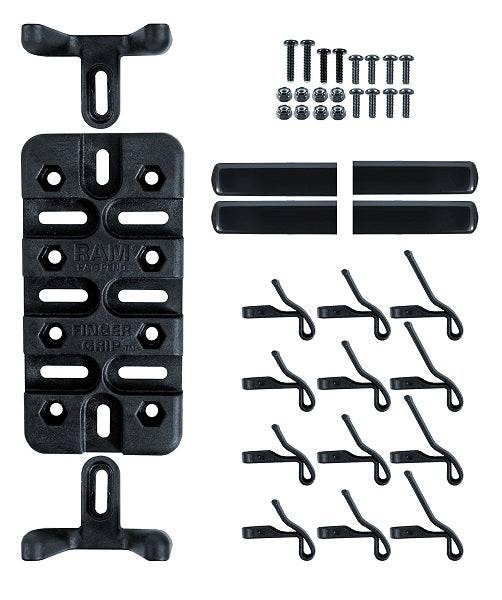

The RAM-B-149Z-UN4U consists of a zinc coated u-bolt base, double socket arm and universal Finger Grip^™ cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM Composite Universal Finger Grip^™ cradle is designed to hold a large amount of cell phones and electronic devices. The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The spine plate contains the universal AMPs and 1.5" x 2" hole patterns.

Specs & Features

Dimensions:
Minimum with Top and Bottom Plates: 5.25"
Maximum with Top and Bottom Plates: 6.0"
The top and bottom plates can be removed for larger devices.

Dimensions using Short Arm Clamps:
Maximum Depth: 0.75"
Minimum Width: 1.25"
Maximum Width: 3.0"

Dimensions using Medium Arm Clamps:
Maximum Depth: 1.25"
Minimum Width: 1.5"
Maximum Width: 3.5"

Dimensions using Long Arm Clamps:
Maximum Depth: 1.6"
Minimum Width: 2.25"
Maximum Width: 3.5"

Material:
High Strength Composite and Powder Coated Marine Grade Aluminum

Ball Size:
B Size 1" Rubber Ball
Plate Dimensions:
3" Width x 3" Height

Note:
The "U" in the part number reflects product packaged in poly bag.

Weight:
1.05 lbs.

un4 animation of cradle dimensions

Instructions

Rugged Finder-Grip Holder Instructions - PDF

Videos

RAM® Mounts Universal Finger-Grip™ Phone & Radio Holder

RAM Handlebar Rail Mount with Zinc Coated U-Bolt Base for Rails from 0.5" to 1.25" in Diameter

Motorcycle Gear - RAM® Motorcycle Mounting Systems

RAM® Mounts Interchangeable Components

Additional Bases

Additional Mounting Base Options

RAM Motorcycle Base with 9mm Hole and 1" Ball - RAM-B-272U

RAM Motorcycle Fork Stem Base with 1" Ball - RAM-B-342U

RAM Rail Base with Zinc Coated U-Bolt, ATV/UTV Strap & 1" Ball for Rails to 3.15" in Diameter - RAM-B-231Z-2U

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM 2.25" x 0.87" Motorcycle Base with 11mm Hole and 1" Ball - RAM-B-252U

RAM Motorcycle Brake/Clutch Reservoir Cover Base with 1" Ball Offset - RAM-B-346U

RAM 2.5" Round Base With The AMPs Hole Pattern, 1" Ball & Triple Magnetic Base Adapter - RAM-B-202-339U

RAM Rail Base With Stainless Steel U-Bolt & 1" Ball For Rails From 0.5" To 1" In Diameter - RAM-B-231U

RAM Flex Adhesive Base with 1" Ball - RAP-B-378U

RAM Universal Small Tough-Clamp™ with 1" Diameter Rubber Ball - RAP-B-397-1U

Components

RAM Diamond Plate 2.43" x 1.31" with B Size 1" Ball - RAM-B-238U

RAM Universal Finger-Grip™ Phone/Radio Cradle - RAM-HOL-UN4U

RAM Double Socket Arm for B Size 1" Balls - RAM-B-201U

RAM Rail Base With B Size 1" Ball. Zinc Coated U-Bolt For Rails From 0.5" To 1.25" In Diameter - RAM-B-231ZU
