RAM-B-149Z-2-UN4

RAM® Finger-Grip™ Universal Mount with ATV/UTV Rail Base - RAM-B-149Z-2-UN4

$82.49 $92.49

In Stock - Ships for Free!

Description

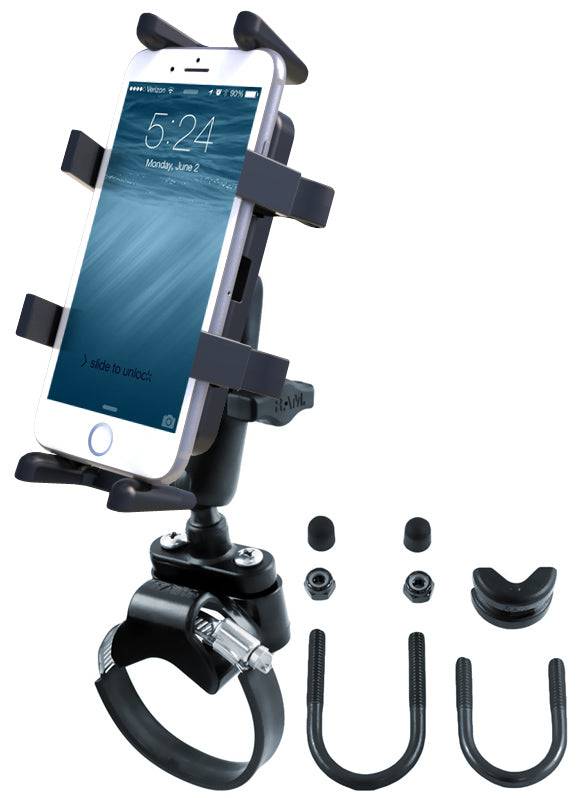

The RAM-B-149Z-2-UN4 consists of a steel strap base, u-bolt bases, double socket arm and universal Finger Grip^™ cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.

Specs & Features

Dimensions:

Minimum with Top and Bottom Plates: 5.25"
Maximum with Top and Bottom Plates: 6.0"
The top and bottom plates can be removed for larger devices.

Rail Accommodation Dimensions:

Mount with Strap: 1.57" to a maximum of 3.15
Mount with U-Bolt: 0.50" to a maximum of 1.25"

Dimensions using Short Arm Clamps:

Maximum Depth: 0.75"
Minimum Width: 1.25"
Maximum Width: 3.0"

Dimensions using Medium Arm Clamps:

Maximum Depth: 1.25"
Minimum Width: 1.5"
Maximum Width: 3.5"

Dimensions using Long Arm Clamps:

Maximum Depth: 1.6"
Minimum Width: 2.25"
Maximum Width: 3.5"

Material:High Strength Composite and Powder Coated Marine Grade Aluminum
Ball Size:B Size 1" Rubber Ball
Plate Dimensions:3" Width x 3" Height
Note:Part number reflects product packaged in clear clam shell for store shelf display.
Weight:1.41 lbs.
