RAM® Temp-Right™ Dock Heating Module for Samsung Tab Active3 - RAM-DOCK-HEATER1-CU

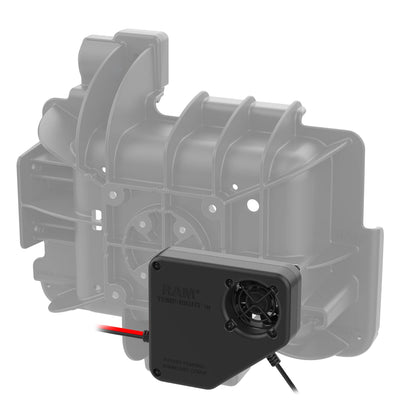

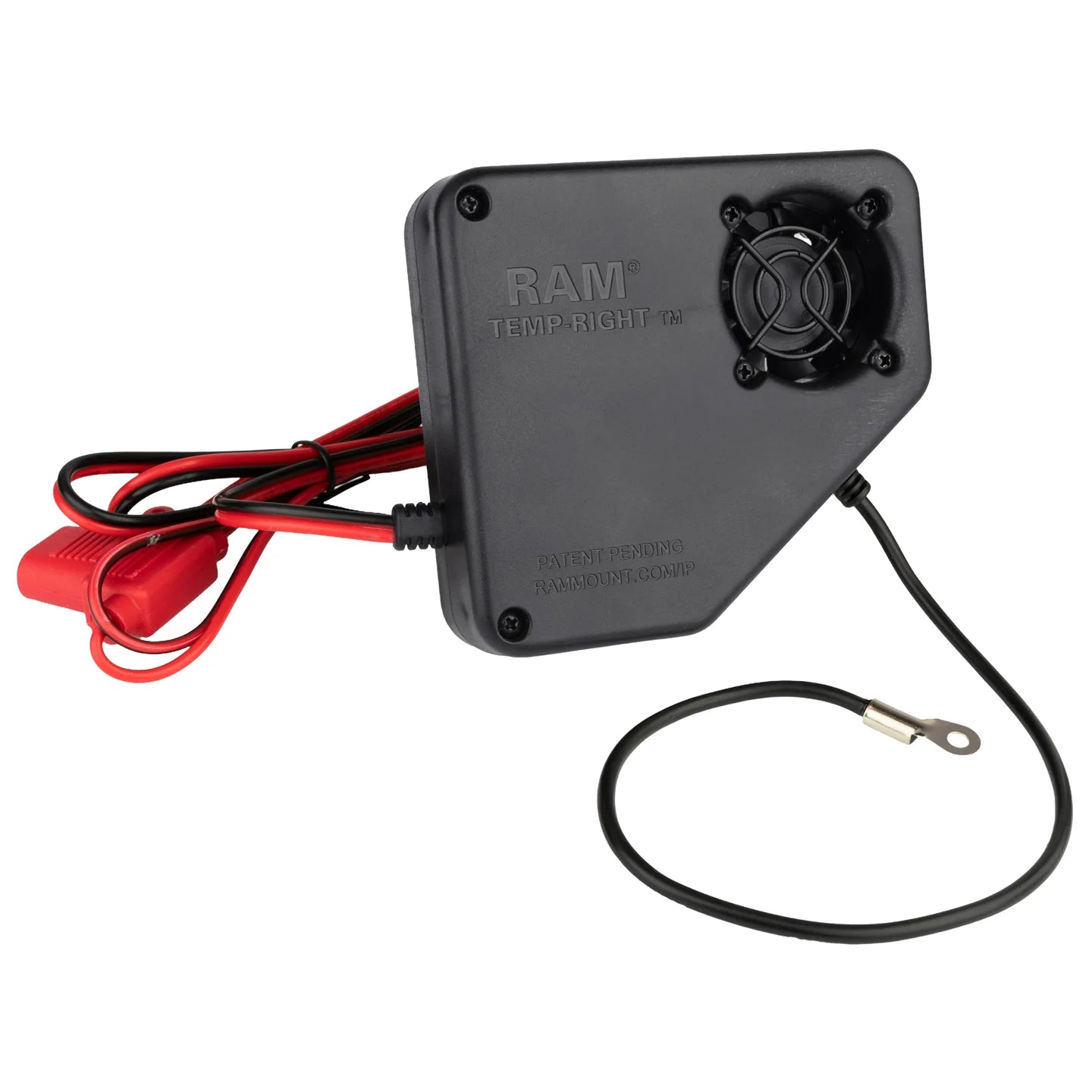

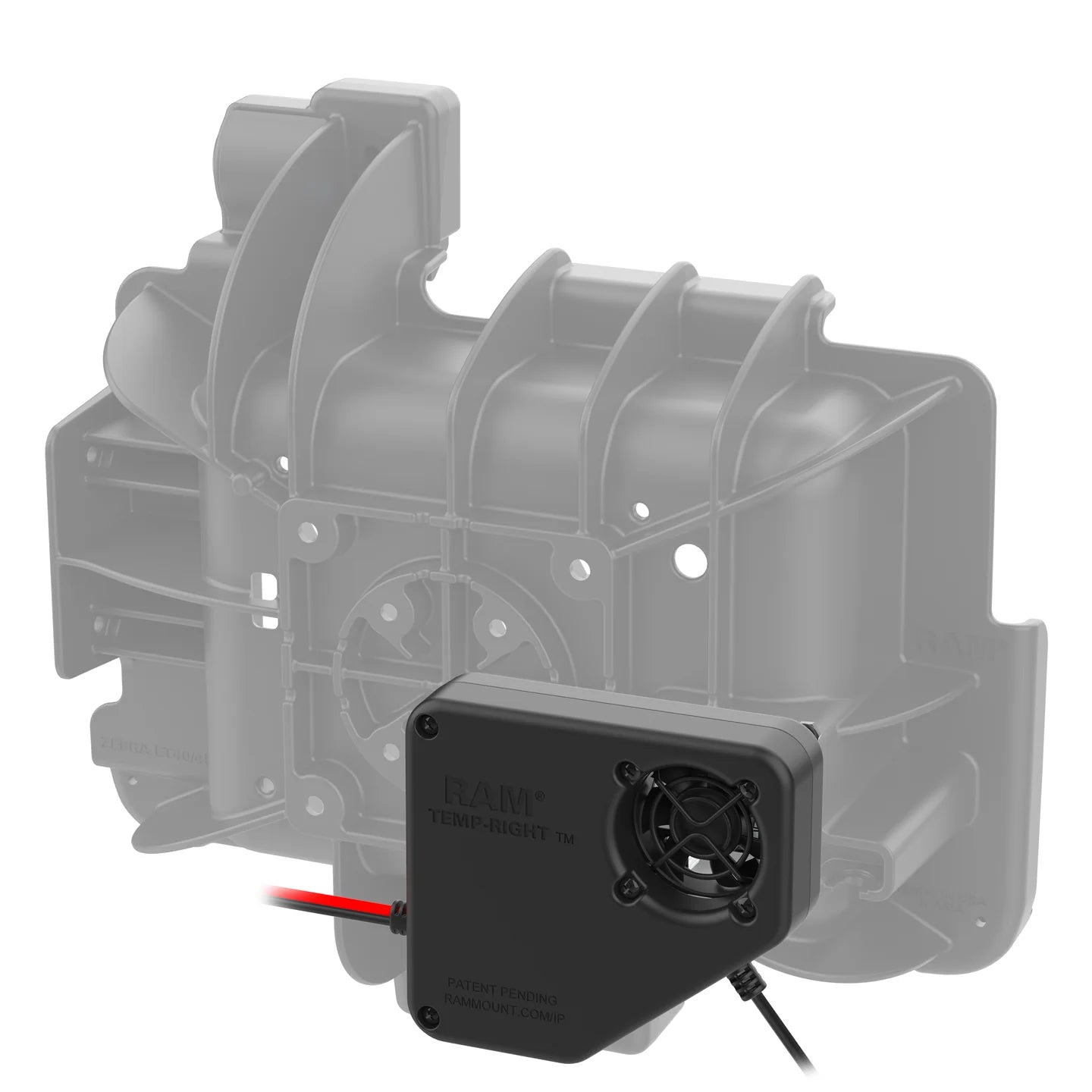

The RAM^® Temp-Right^™ Dock Heating Module for Samsung Tab Active3 GDS^® and RAM^® vehicle docks (RAM-DOCK-HEATER1-CU) is a self-regulating heater module available as an add-on accessory when your Tab Active3 docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees Fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan.

The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right^™. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases.

FEATURES

• Heater module designed specifically for Samsung Tab Active3 RAM^® and GDS^® tablet docks

• Regulates the tablet's operating temperature by generating forced heat to the back of the tablet

• Integrated thermistor detects temperature and automatically activates the heater when temps reach below approximately 32-degrees fahrenheit

• Built-in safety plunger deactivates the heater when the device is undocked

• Backed by a 3-year warranty

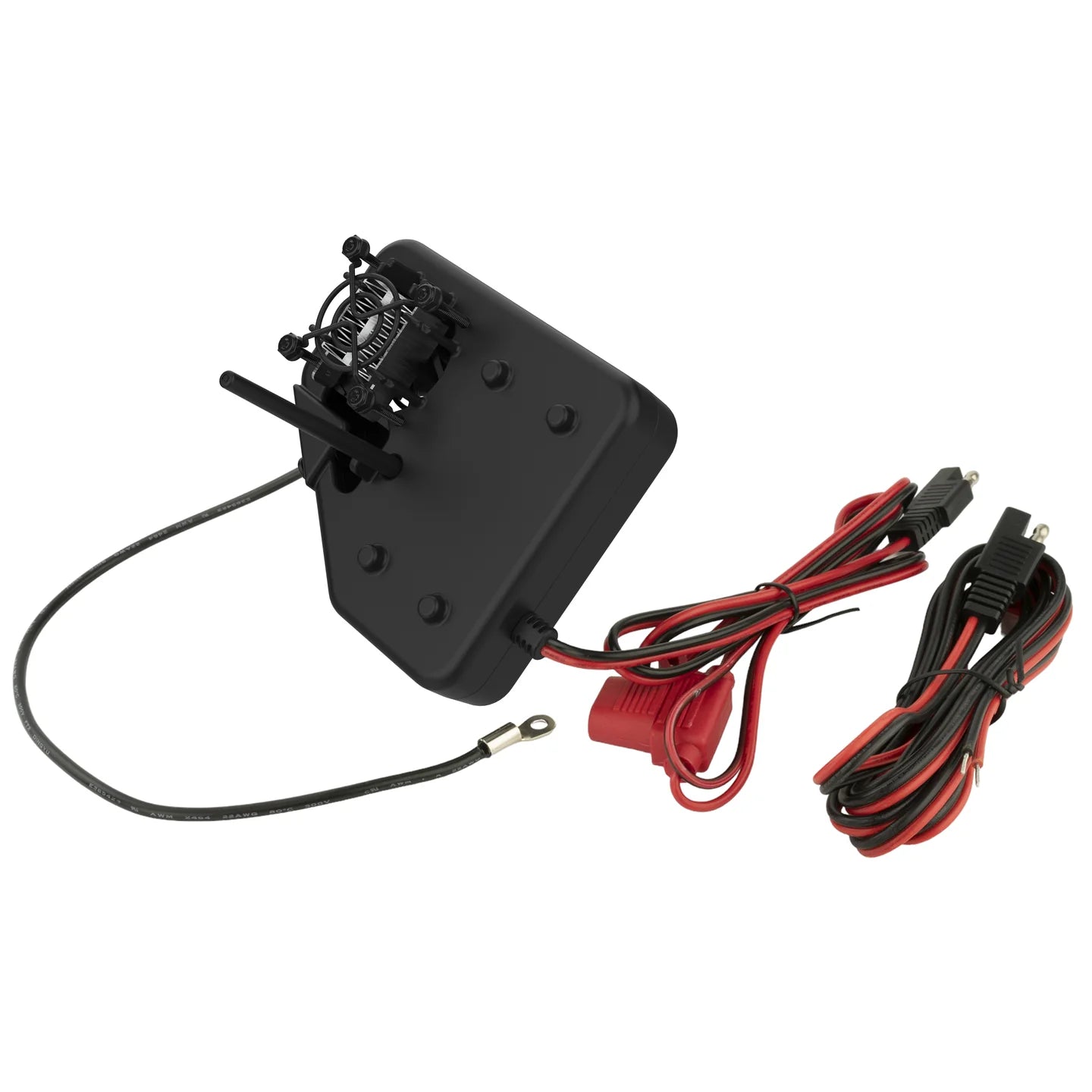

HARDWARE INCLUDED
Assembly Hardware

MATERIALS
High strength composite
Stainless Steel

INPUT VOLTAGE
11-16VDC

OUTPUT VOLTAGE
12V @ 7.5A

POWER OUTPUT
85W

OUTPUT CURRENT
7.5A max

INPUT CABLE LENGTH
1 Meter

OPERATING TEMPERATURE
-30°C to +70°C

STORAGE TEMPERATURE
-40°C to +85°C

COMPLIANCE
WEEE and RoHS Compliant

WARRANTY
3 year warranty

WEIGHT
0.71 lb

Samsung

• Tab Active2

• Tab Active3

Compatible Docks:

RAM-HOL-SAM60PNU
RAM-HOL-SAM60PDNU
RAM-HOL-SAM60PD2NU
RAM-HOL-SAM60P-NFCU
RAM-HOL-SAM58PKLNU
RAM-HOL-SAM58PDKLNU
RAM-HOL-SAM58PD2KLNU
RAM-HOL-SAM58PKL-NFCU

GDS® Hardwire Power Cable With Dual SAE Splitter - RAM-GDS-CAB-SAE-SPLIT

GDS® 24-60VDC Input (12VDC Output) Hardwire Charger With Male DC 5.5mm - RAM-GDS-CHARGE-V16U

Instructions

 RAM^® Temp-Right^™ Instructions

Documents

 RAM^® Temp-Right^™ Buyer's Guide
