RAM-HOL-ZE20PD2NLLU
More on the way!

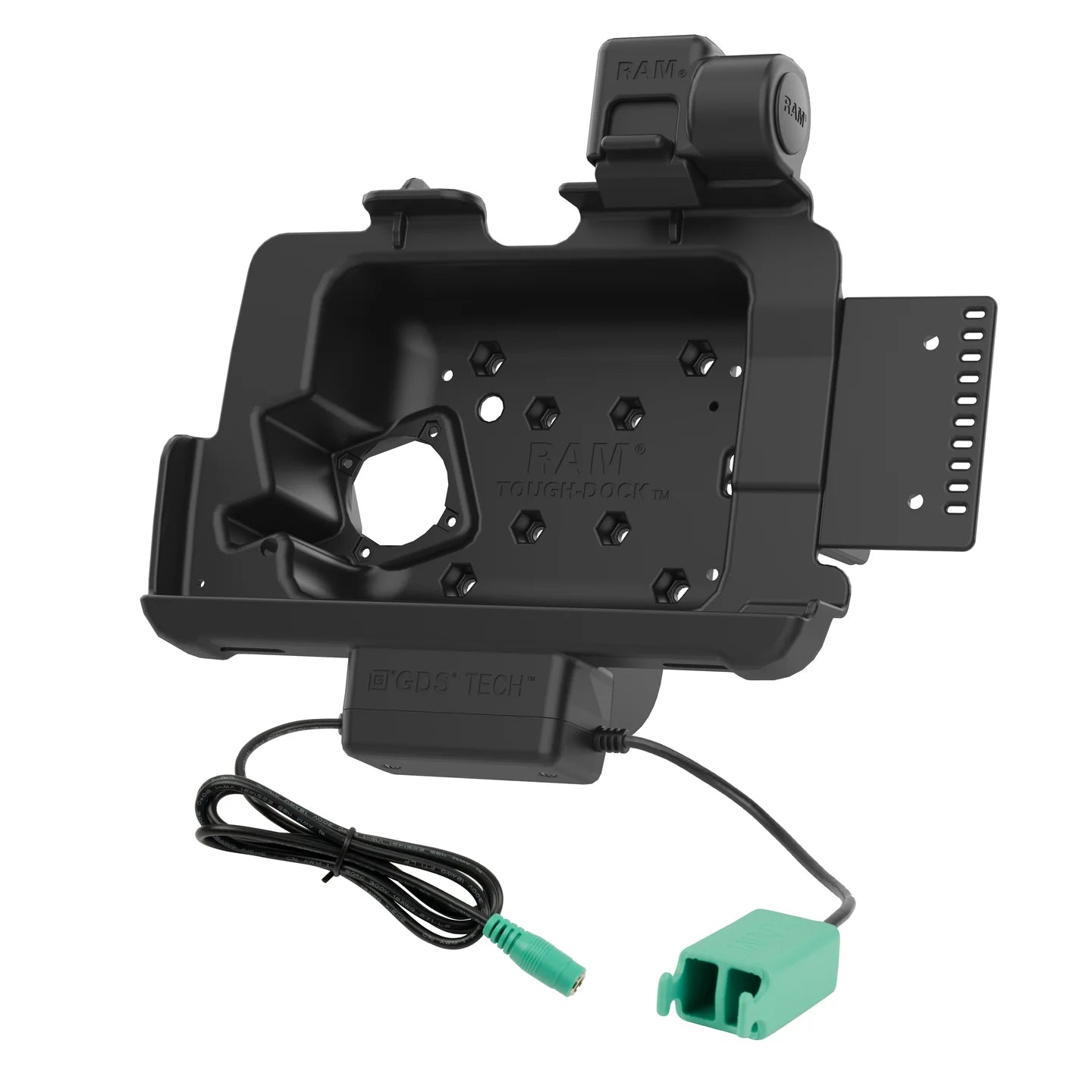

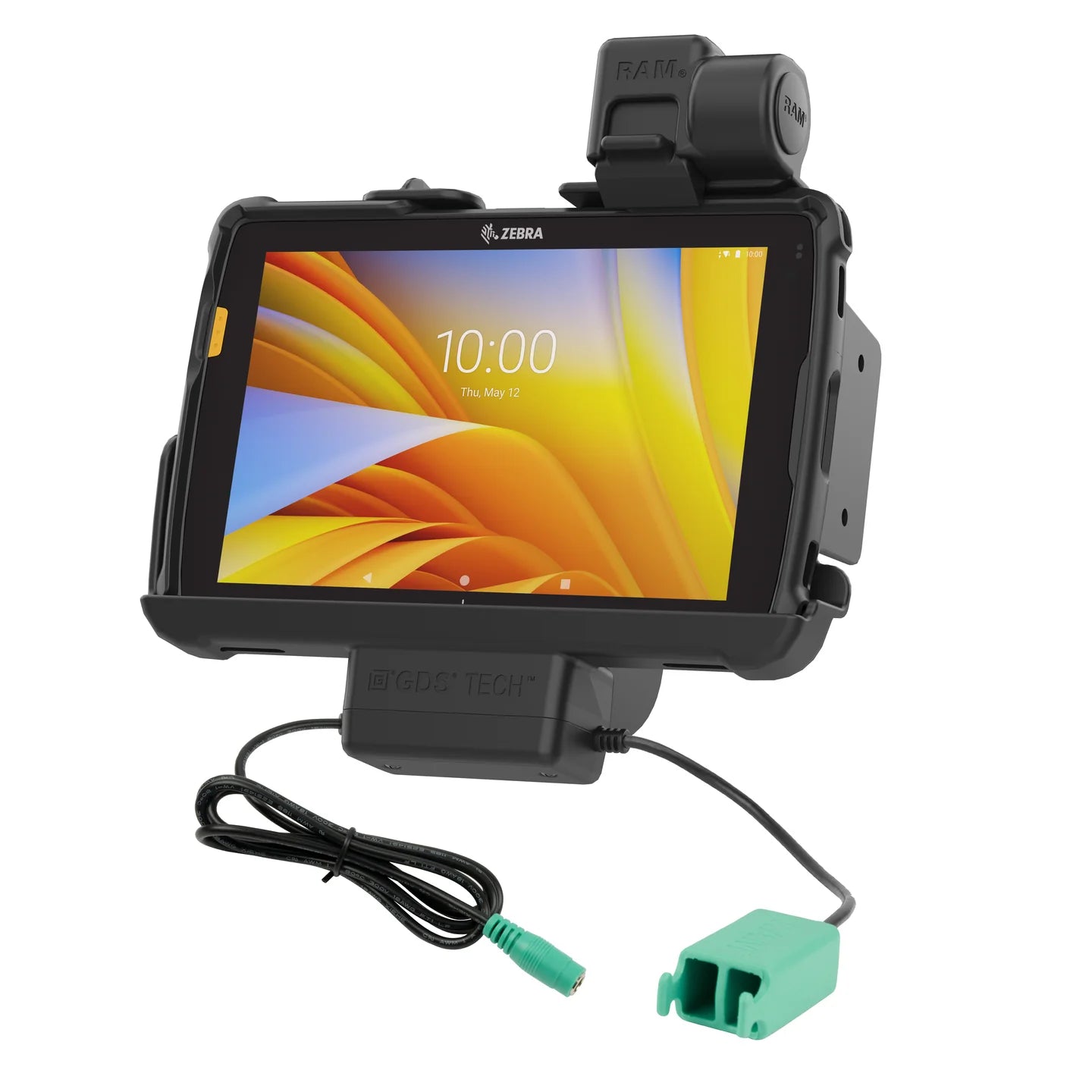

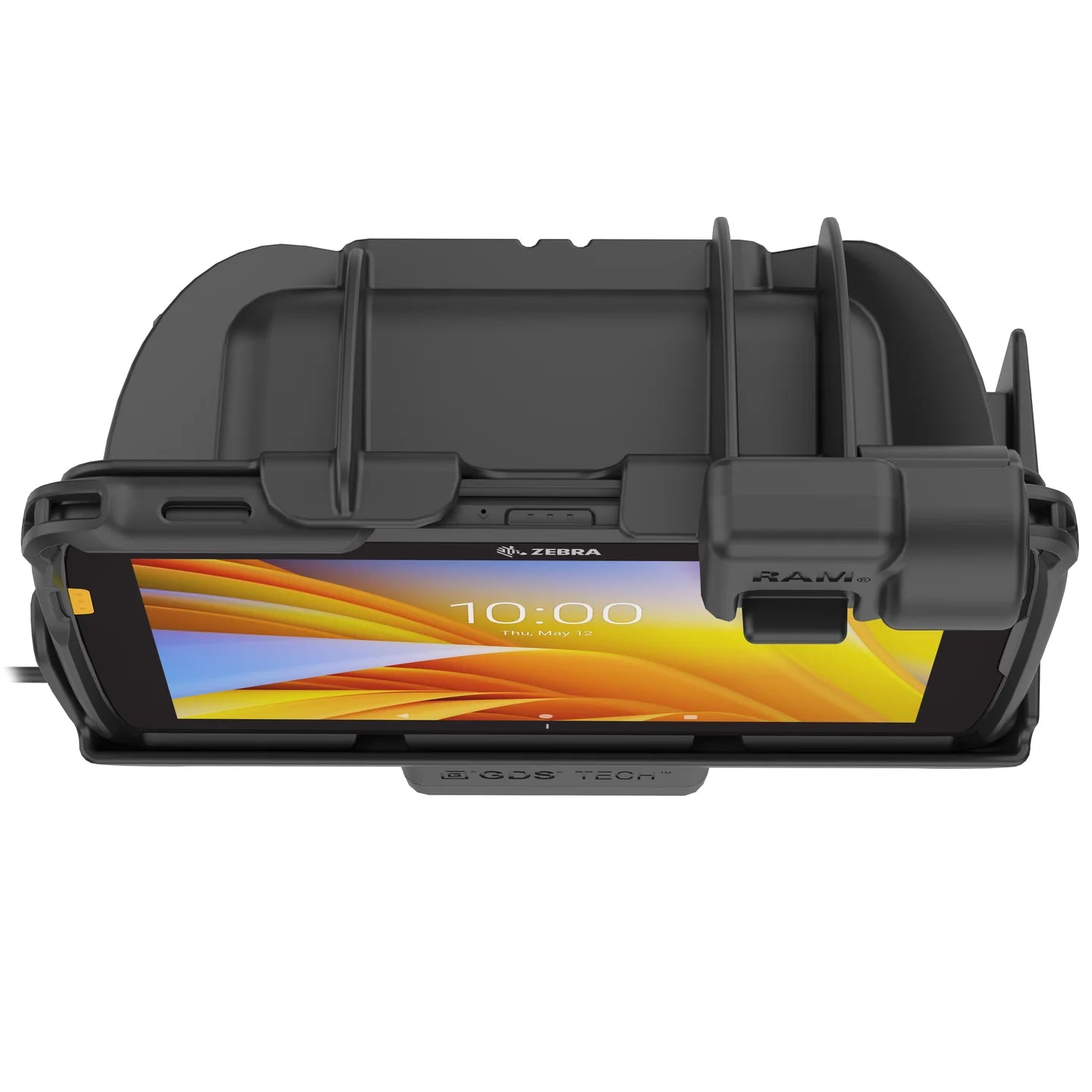

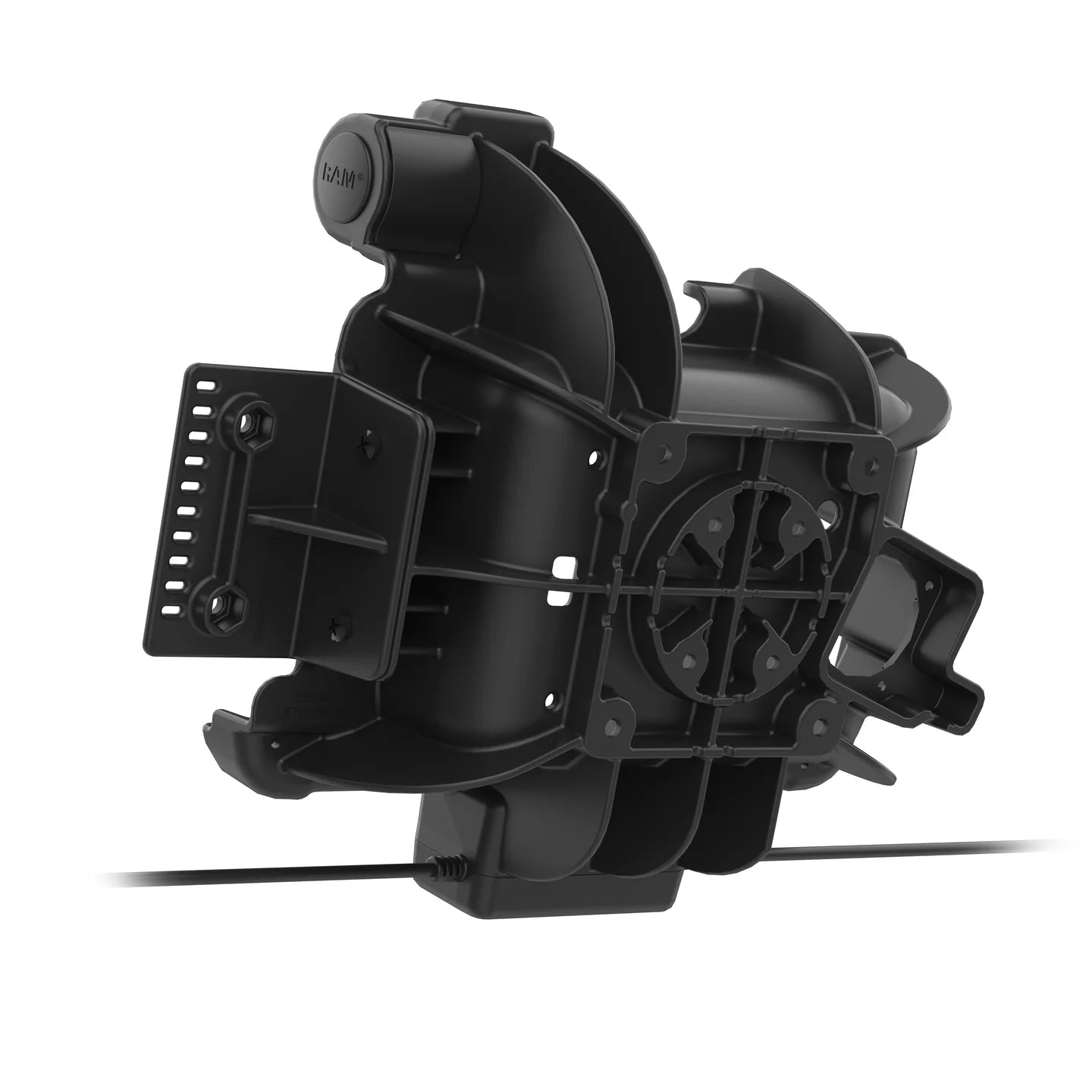

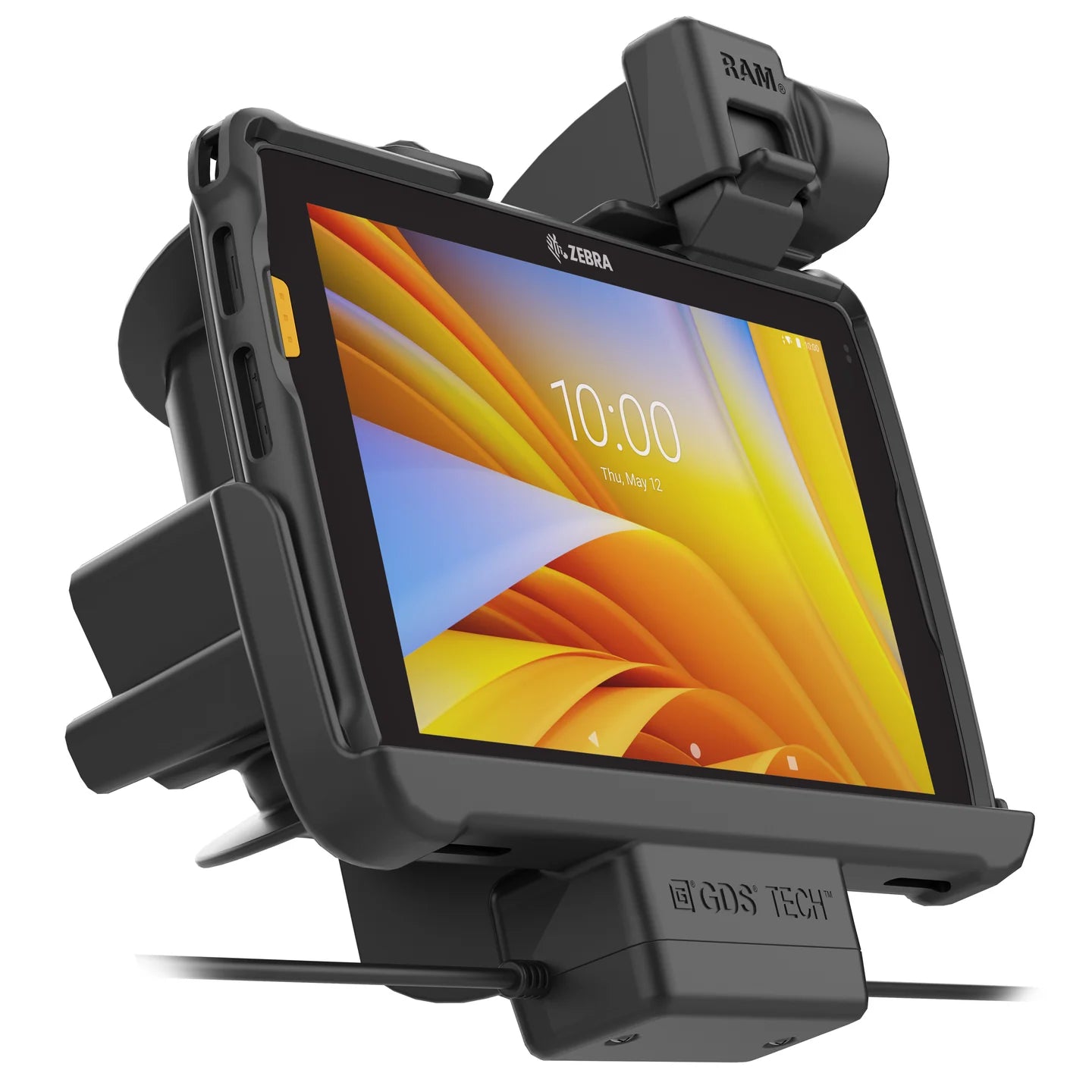

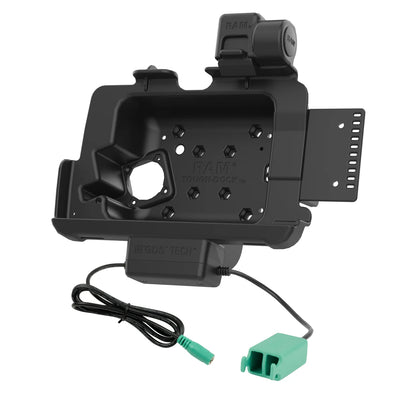

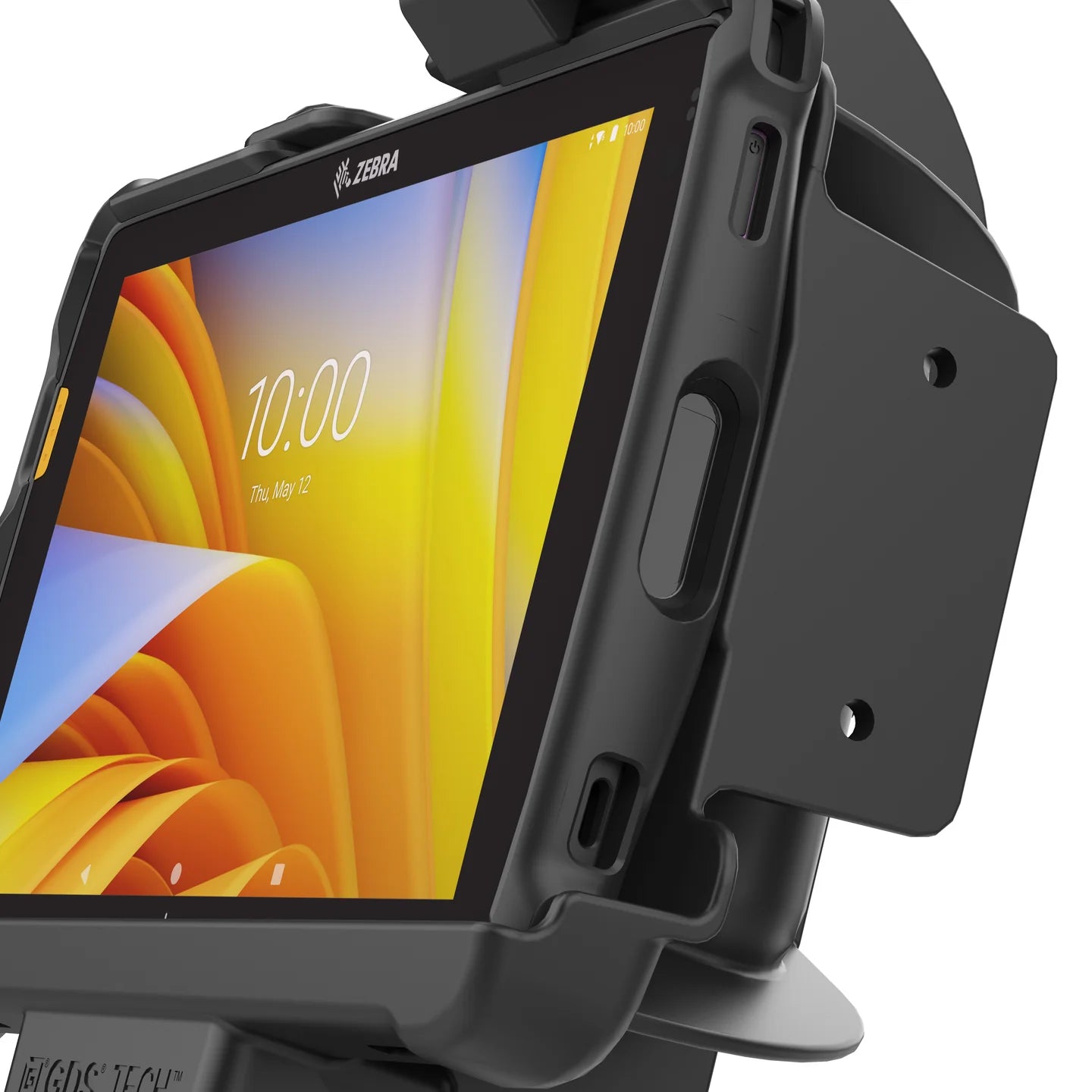

( Chat Live to get an ETA ) $300.00 The RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 8" Tablet (RAM-HOL-ZE20PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. FEATURES Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 8" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more Backed by a 3-year warranty HARDWARE INCLUDED HOLE PATTERN MATERIALS INPUT CONNECTOR INPUT CABLE LENGTH OUTPUT CONNECTOR OUTPUT CABLE LENGTH TRANSFER SPEED CERTIFICATIONS WARRANTY WEIGHT Zebra ET40 8" Tablet with IntelliSkin® Next Gen ET45 8" Tablet with IntelliSkin® Next Gen GDS® Roto-Mag™ 3-In-1 Accessory For Zebra ET4x 8” Enterprise Tablet - RAM-GDS-ROTO2-ZE20U RAM® Vent-Temp™ With Front Dock Connection For Rectangular Vents - RAM-VENT2-RCT-50U RAM® Vent-Temp™ With Front Dock Connection For Round Vents - RAM-VENT2-RND-50U RAM® Vent-Temp™ With Back Dock Connection For Rectangular Vents - RAM-VENT1-RCT-50U GDS® 10-32VDC Input (12VDC Output) Hardwire Charger With Male DC 5.5mm - RAM-GDS-CHARGE-V10U GDS® 20-60VDC Input (12VDC Output) Hardwire Charger With Male DC 5.5mm - RAM-GDS-CHARGE-V9U Documents Instructions
Description
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
High strength composite
5.5mm DC Connector
1 Meter
(2) USB 2.0 Type A
215mm
12Mbps
CE Certification
e-Mark Certification
RCM Certification
FCC Certification
3 year warranty
1.52 lb Compatibility
Accessories
Mounting Options
RAM Double Swing Arm With 12" Male Tele-Pole™, 18" Female Tele-Pole™ & 3.625" Square Base (75mm X 75mm VESA) - RAM-VP-SW1-1218-2461
RAM® 4" Square Post Clamp Mount With 75x75mm VESA Plate - RAM-D-2461U-C-247-4
RAM® No-Drill™ Mount For '17-23 Ford F-Series + More - RAM-VB-195-SW2
RAM® No-Drill™ Mount For '19-23 Chevy Silverado, 2021-2023 Tahoe + More - RAM-VB-203-SW2
RAM® No-Drill™ Mount For '12-23 RAM 2500-5500 + More - RAM-VB-178A-SW2
Additional Information
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®. GDS® Technology™ Catalog
